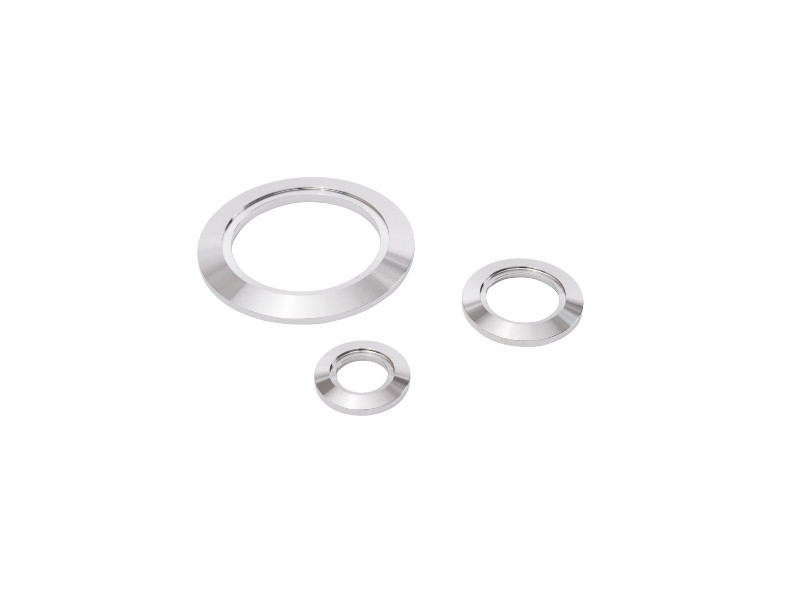

KF40 44mm Bored Flange
KF Flanges (Klien) are the standard din 28430 & ISO 2861 connections for vacuum fittings up to DN50 used in low & high vacuum. Along with the ancillary components they offer a simple solution for applications requiring easy and repeated assembly.Sealing is accomplished with a centering with a nitrile or viton o’ring squashed between a pair of KF Flanges and pulled together using a circumferental clamp.KF Bored Flanges points:Material: 304L stainless steelBakeable to 150° CVacuum Rating: 1×10-8 mbarWide range of elbows, crosses & tees are availableTubulated Flanges are available for welding to stainless steel tubeKF Bored flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. KF Bored flanges are supplied in a sealed plastic bag with a protective plastic cap.KF Bored flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
| Blank/Bored: Bored |
| FlangeSize: KF40 |
| Material: 304L, 304L |
