  2. Compact XYZ Stage, 75mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange

Compact XYZ Stage, 75mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange

https://www.ultrahighvacuum.com/web/image/product.template/2/image_1920?unique=fde06fb

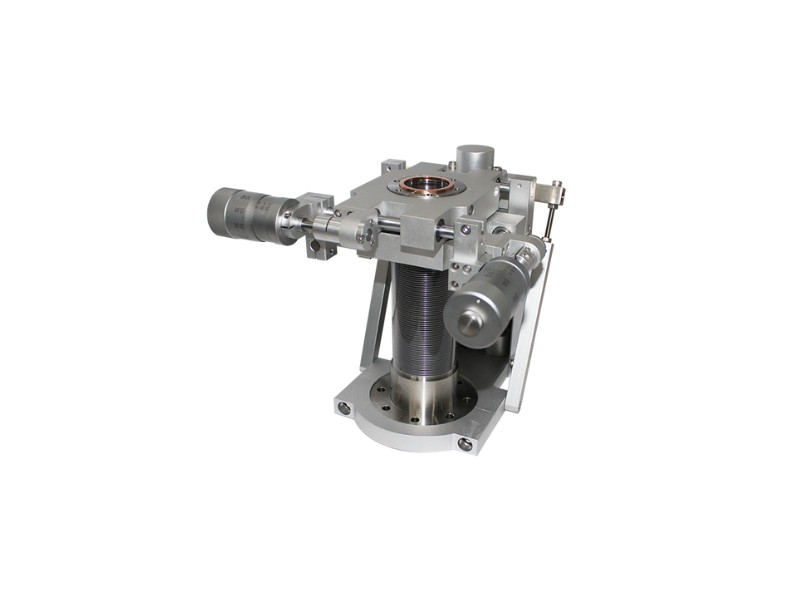

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

• Working Pressure：10-11 mbar~1 bar
• Manual Actuator
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Micrometer with 10um Resolution
• Z-motion scale in 1mm increment
• Top mounting flange: CF35, tapped hole
• Bottom mounting flange: CF63, clear hole

£ 4,392.16 4392.16 GBP £ 4,392.16

£ 4,392.16

Not Available For Sale

  • FlangeSize
  • Z Travel
  • XY Travel

This combination does not exist.

SKU: SXYZ63Z75
Contact Us
FlangeSize: CF114
Z Travel: 75mm
XY Travel: +/-12.5mm
