Medium XYZ Stage, Upto 200mm Z Travel, +/-7.5mm XY Travel, 65mm Clear Bore, CF114 Travelling & Mounting Flanges

Medium XYZ Stage, Upto 200mm Z Travel, +/-7.5mm XY Travel, 65mm Clear Bore, CF114 Travelling & Mounting Flanges

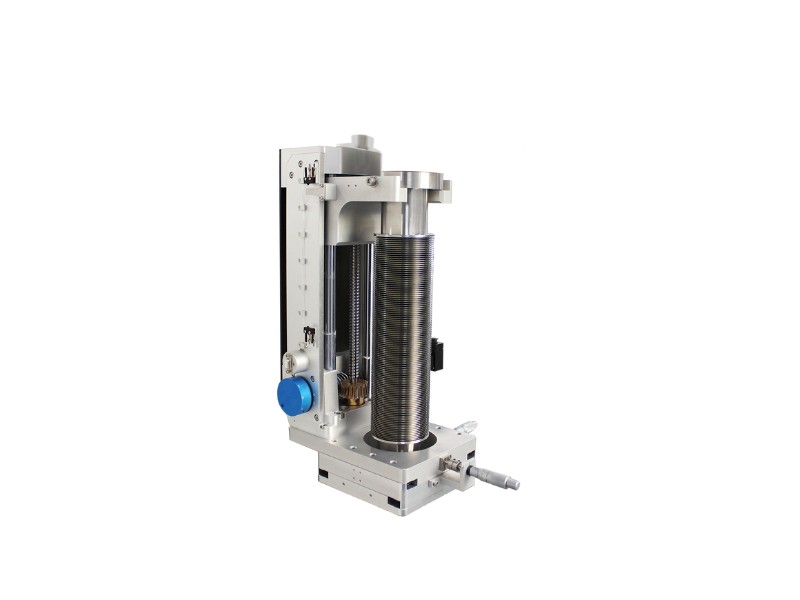

The medium-sized three-dimensional translation stage has high maneuverability and can make the welding bellows move in three directions of X, Y, and Z.

• X/Y direction adopts crossed roller and ball screw structure, which is strong and compact.
• The Z direction adopts the combined structure of the optical axis and the ball screw.
• The product is a modular product with multiple configurations to choose from.

Welcome to call for more information.

FlangeSize
Z Travel

This combination does not exist.

SKU: MXYZ63Z100S-0108

Medium XYZ Stages

FlangeSize: CF114

Z Travel: 200mm
