  2. Full-scale XYZ Stage (crossed roller bearings) Z-axis 350mm Travel

Full-scale XYZ Stage (crossed roller bearings) Z-axis 350mm Travel

https://ultrahighvacuum.com/web/image/product.template/35465/image_1920?unique=8c82652

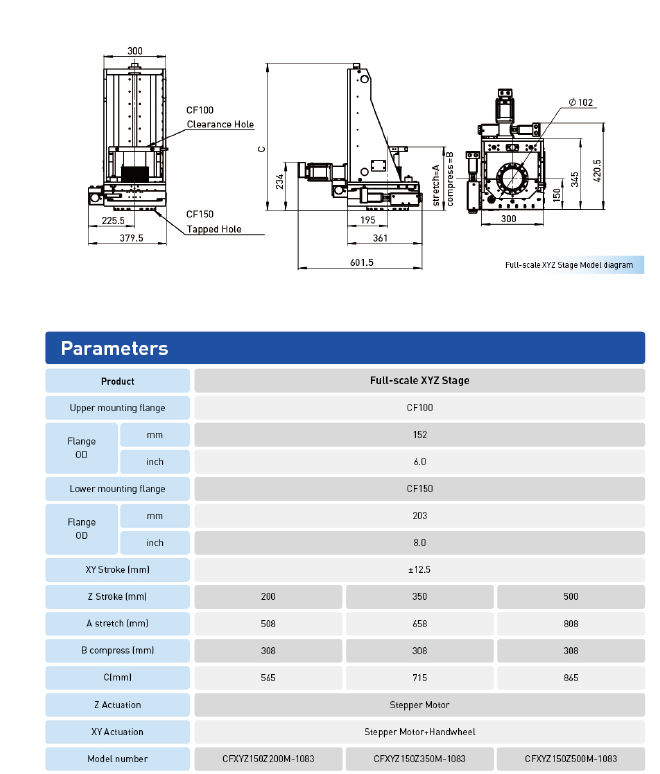

XY +/-12.5mm Travel, Travelling Flange 152mm OD, Base Flange 203mm OD, 102mm Clear Bellows Bore, All axes motorised.

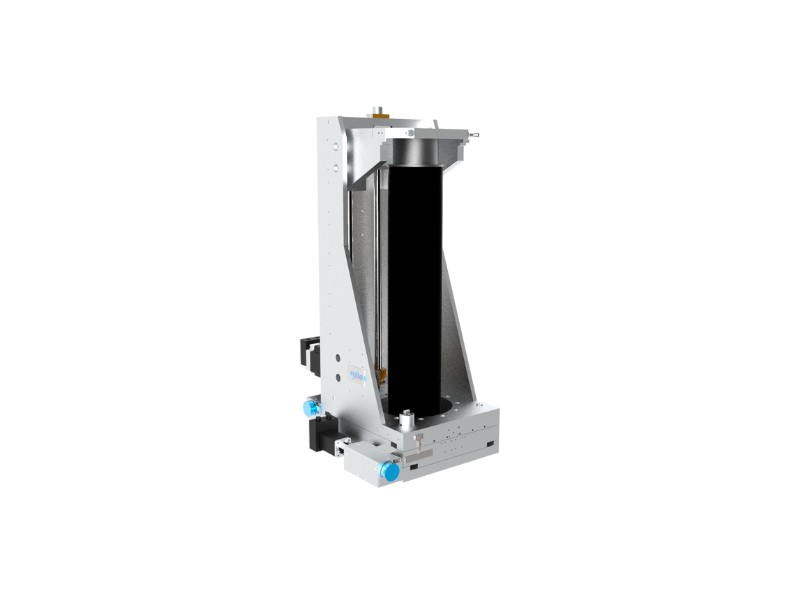

The full-size three-dimensional translation stage (cross rollers) has high manoeuvrability and can move the welded bellows in three directions of X, Y, and Z. X/Y direction adopts crossed roller and ball screw structure, which is strong and compact. The Z direction adopts the combined structure of the optical axis and the ball screw.

Not Available For Sale

  • XY Travel
  • Z Travel

This combination does not exist.

SKU: CFXYZ150Z350M-1083
Contact Us
XY Travel: +/-12.5mm
Z Travel: 350mm

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This model:  CFXYZ150Z350M-1083

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.


If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
