Compact XYZ Stage, 100mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange

https://ultrahighvacuum.com/web/image/product.template/17914/image_1920?unique=564c285

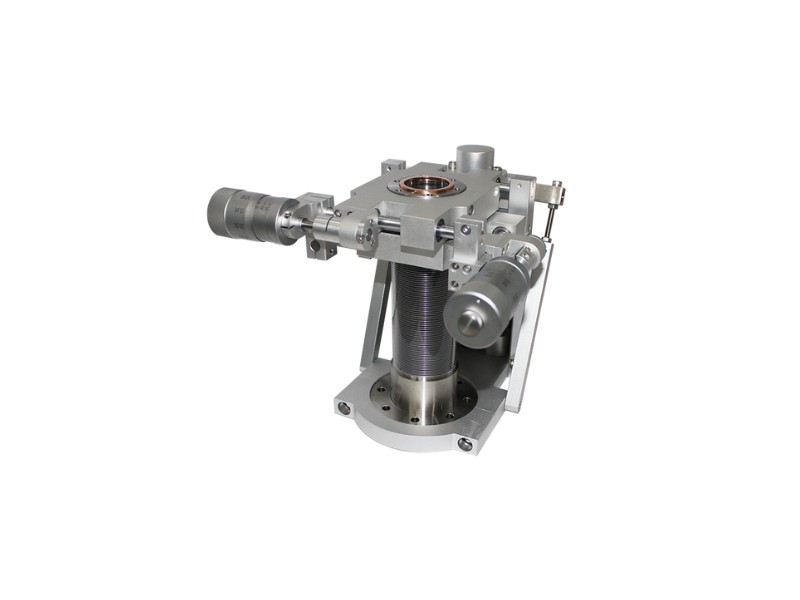

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

● Working Pressure:10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10um Resolution
● Z-motion scale in 1mm increment
● Top mounting flange: CF35, tapped hole
● Bottom mounting flange: CF63, clear hole

£ 5,534.12 5534.12 GBP £ 5,534.12

£ 5,534.12

Not Available For Sale

  • FlangeSize
  • Z Travel
  • XY Travel

This combination does not exist.


SKU: SXYZ63Z100
Compact XYZ Stages
FlangeSize: CF114
Z Travel: 100mm
XY Travel: +/-12.5mm
