  2. Full-scale XYZ Stage (crossed roller bearings) Z-axis 500mm Travel

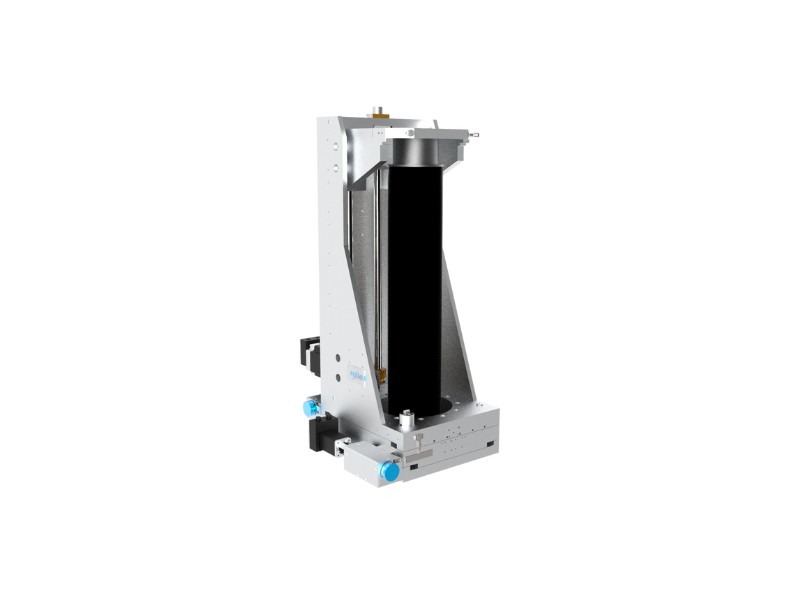

Full-scale XYZ Stage (crossed roller bearings) Z-axis 500mm Travel

https://ultrahighvacuum.com/web/image/product.template/35466/image_1920?unique=78cf1ee

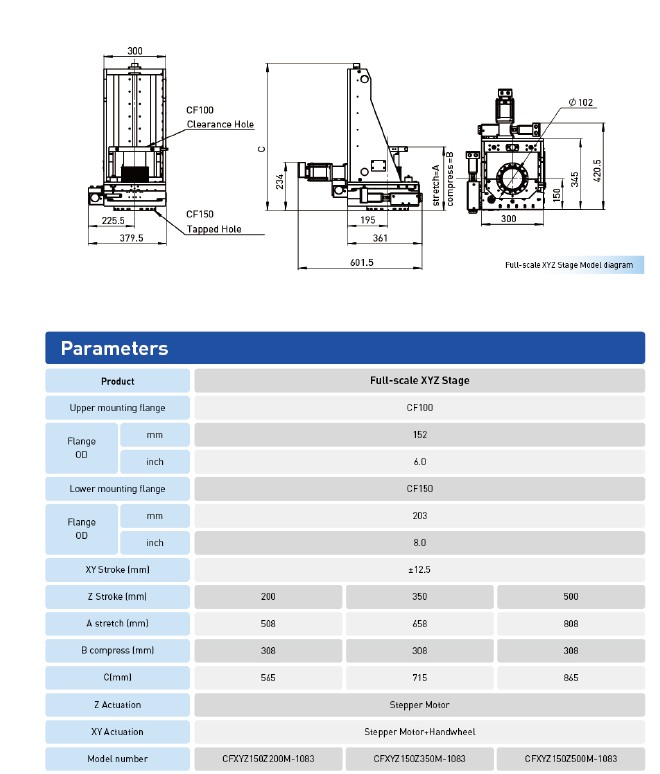

XY +/-12.5mm Travel, Travelling Flange 152mm OD, Base Flange 203mm OD, 102mm Clear Bellows Bore, All axes motorised.

The full-size three-dimensional translation stage (cross rollers) has high manoeuvrability and can move the welded bellows in three directions of X, Y, and Z. X/Y direction adopts crossed roller and ball screw structure, which is strong and compact. The Z direction adopts the combined structure of the optical axis and the ball screw.

Not Available For Sale

  • XY Travel
  • Z Travel

This combination does not exist.

SKU: CFXYZ150Z500M-1083
Contact Us
XY Travel: +/-12.5mm
Z Travel: 500mm

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product:  CFXYZ150Z500M-1083
