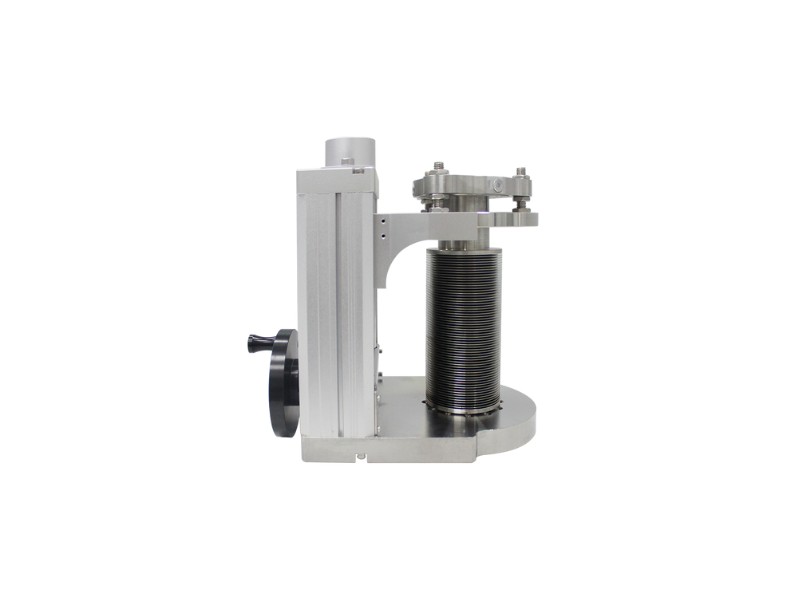

Linear Translator with Aluminum Frame (Manual) 150mm Travel, +/-3mm Degree Tilt, CF70 Flange

Linear Translator with Aluminum Frame (Manual) 150mm Travel, +/-3mm Degree Tilt, CF70 Flange

Linear drive with adjustable flange back plate, integrated adjustable flange and aluminum plate frame support, both stability and accuracy, moving flange end allows ±3° deflection, can carry heavy parts in ultra-high vacuum environment of transportation.

This product has a variety of stroke options, manual drive or electric drive, and can be customized.

• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Angular tilt: ±3°
• Top mounting flange: CF flange, tapped hole
• Etched Scale in 1 mm Increments

£ 3,162.35 3162.35 GBP £ 3,162.35

£ 3,162.35

FlangeSize
Travel
Actuation
Linear Translator Options

This combination does not exist.

SKU: LPABS35L150M

Linear Translator with Aluminium Frame (with adjustment function)

FlangeSize: CF70

Travel: 150mm

Actuation: Manual

Linear Translator Options: Aluminium Frame (with adjustment function)

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Diagram & Dimensions

This product: LPABS35L150M
