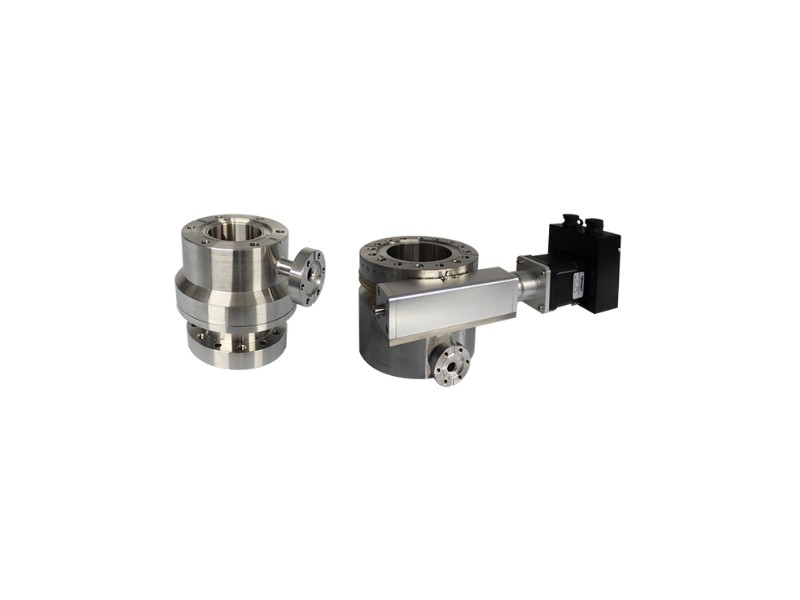

Compact Differentially Pumped Rotary Feedthrough (Stepper Motor) 360 Degree Rotation, CF114 Flange

Compact Differentially Pumped Rotary Feedthrough (Stepper Motor) 360 Degree Rotation, CF114 Flange

The compact differential rotary drive adopts side sealing, which is more compact, and can still meet the requirements of ultra-high vacuum applications, providing basic rotary motion for components, and realizing 360° continuous rotation, which is suitable for some occasions with limited size.

Differential rotational drives can be applied to sample surface analysis (XPS, AES or SIMS), ion/neutron/atom scattering experiments, etc.

• Manual/ Step Motor Actuator
• Cross Roller Bearings
• Bakeable to 150℃
• Rotation range: 360° continuous
• One stage Differential pumping for UHV Performance
• Mounting flange on both sides: CF flange, tapped hole

£ 7,432.00 7432.0 GBP £ 7,432.00

£ 7,432.00

FlangeSize
Actuation

This combination does not exist.

SKU: CDPRF63A

Compact Differentially Pumped Rotary Feedthroughs

FlangeSize: CF114

Actuation: Stepper Motor

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Diagram & Dimensions

This product: CDPRF63A

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
