  2. Full-scale XYZ Stage (crossed roller bearings) Z-axis 200mm Travel.

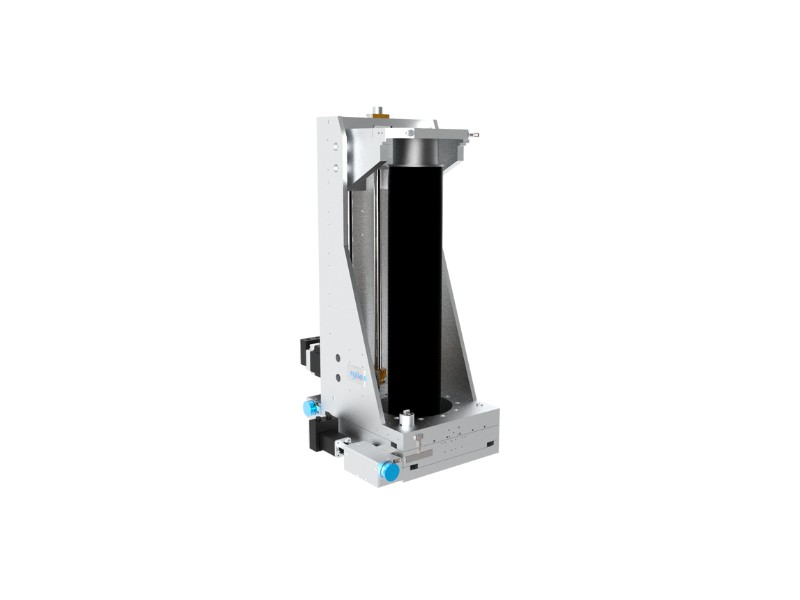

Full-scale XYZ Stage (crossed roller bearings) Z-axis 200mm Travel.

https://ultrahighvacuum.com/web/image/product.template/35435/image_1920?unique=c694d34

XY +/-12.5mm Travel, Travelling Flange 152mm OD, Base Flange 203mm OD, 102mm Clear Bellows Bore, All Axes Motorised.

The full-size three-dimensional translation stage offers high precision in three directions of X, Y, and Z. X/Y direction adopts a crossed-roller bearing structure, which is strong and compact, whilst the Z direction adopts a combination of plain shaft and ball screw.

Full-scale XYZ stages are modular offering a wide range of configurations and accessories.

Not Available For Sale

  • XY Travel
  • Z Travel

This combination does not exist.

SKU: CFXYZ150Z200M-1083
Contact Us
XY Travel: +/-12.5mm
Z Travel: 200mm

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This model:  CFXYZ150Z200M-1083
