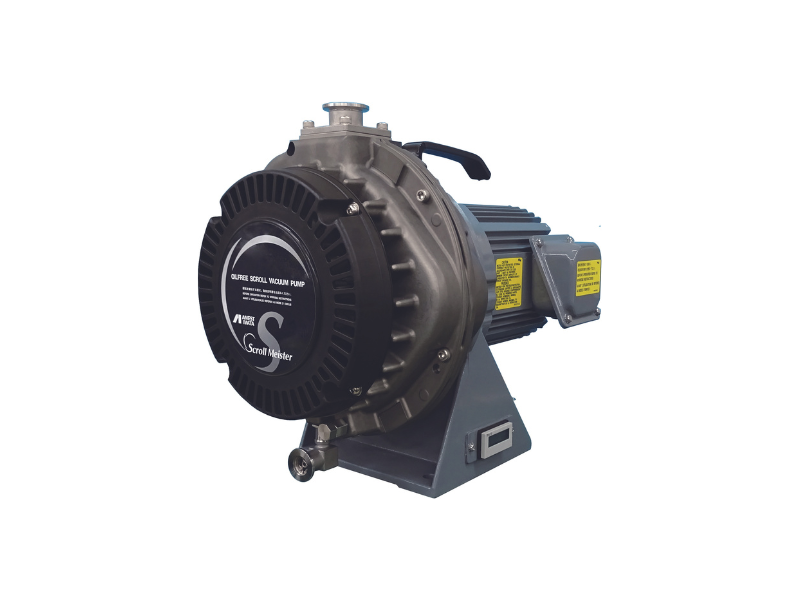

Dry/Oil-free scroll vacuum pump, 250 L/min, Single Phase, Vertical Inlet
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.
Specification:
• Noise Level: 58 (66 with air flushing)
• Pump Speed: 250 L/min
• Final Pressure (50Hz): 1.6
• Motor Power (kW): 0.4
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Three Phase: 200, 208, 230, 380, 350, 460
• Weight Single Phase: 25
• Weight Third Phase: 23
• Water Vapor Capacity (g/Tag): 25 (with air flushing)
• Air Flushing (L/min): 10
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5 ~ 40
| Pumping Speed: 250L/min |
| Inlet: Vertical |
| Phase: Single phase |
