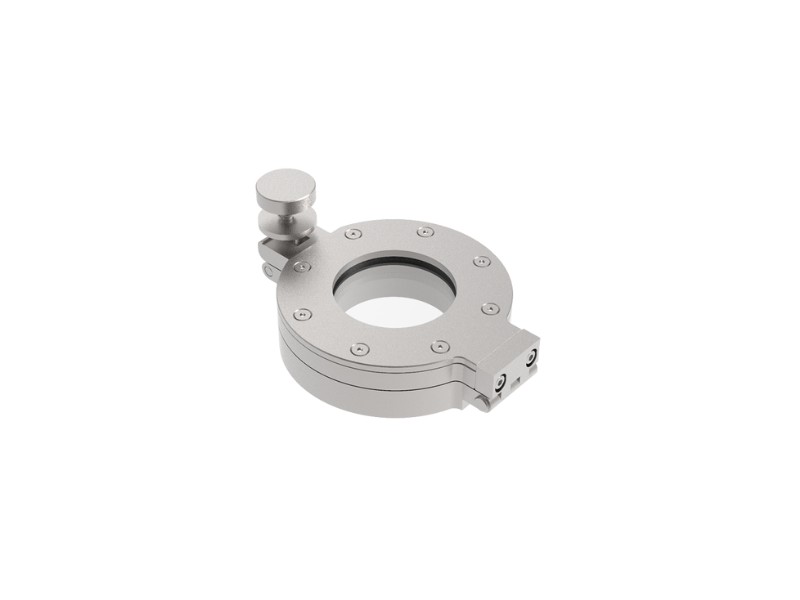

Fast Entry Door with Viewport, 60mm Viewing Diameter, CF114 Flange
The quick-load door facilitates manual loading of samples into and out of the vacuum chamber and is widely used in different systems. The injection door is equipped with a spring-loaded handle locking device. The unique patented design (utility model patent number: 201720665992.9) avoids excessive internal pressure and damage to the pre-extraction chamber. The regular version of this product is sealed with an elastic Viton O-ring, suitable for vacuum up to 10-8 mbar, and the window material is replaceable quartz glass. This product is suitable for all CF flanges and can be docked with other equipment.
● UHV Rated to 10-8 mbar
● Bakeable to 150℃
● Spring-loaded locking mechanism
● With Viewport
● O-ring seal
| FlangeSize: CF114 |
| Viewport Optic: Quartz glass |
| Viewport Type: Fast entry door with viewport |
