ISO Fittings

ISO Fittings


The ISO ranges of flanges and fittings are manufactured from high quality stainless steel.

There are various types of ISO flanges:

  1. ISO-K (clamp) flanges with a grooved ring for inserting wall clamps and double claw clamps are smaller and less expensive.
  2. ISO-F (fixed) flanges with a set of through-bore holes are pressed together with standard bolts. They are more stable than ISO-K flanges which enable them to mechanically support parts of the vacuum chamber.
  3. ISO bolt rings are used to make an ISO-K flange and ISO-F flange.
  • Material: 304L Stainless steel
  • Bakeable to 200’C (150’C continuous)
  • Vacuum rating 1×10-8mbar
  • Wide ranges of Elbows, Crosses & Tees are available
  • Bored Flanges Are Available For Welding To Stainless Steel Tube
ISO80 Aluminium Trapped Centering Ring with Nitrile O-Ring
SKU: ISO80ANCRT
ISO Aluminium Trapped Centering Rings with Nitrile O Rings & Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Nitrile. ISO Aluminium Trapped Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO80 Aluminium Centering Rings with Viton O-Rings
SKU: ISO80AVCR
ISO Aluminium Centering Rings with Viton O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 5.57 5.57 GBP
ISO80 Aluminium Trapped Centering Ring with Viton O Rings
SKU: ISO80AVCRT
ISO Trapped Centering Rings with Viton O Rings and Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Trapped Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 10.50 10.5 GBP
ISO80 Bored 89mm Claw Clamp Flange
SKU: ISO80B89
ISO Claw Clamp Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Bored Flanges are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 25.95 25.95 GBP
ISO80 Claw Clamp Blank Flange
SKU: ISO80BK
ISO Claw Clamp Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Blank Flanges are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 24.65 24.650000000000002 GBP

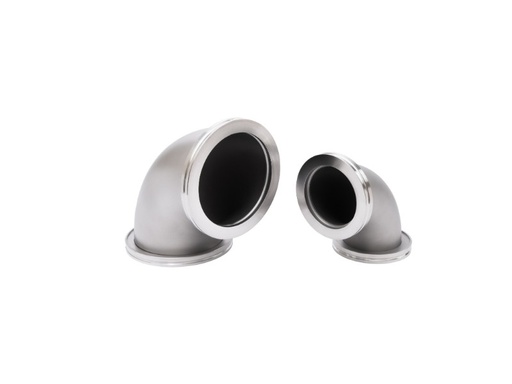

ISO80 90 Degree Elbow
SKU: ISO80E
ISO 90 Degree Elbows were manufactured for in vacuum process systems to help alter the direction of pipework.This product is made from 304 stainless steel. The ISO 90 Degree Elbow is also helium leak tested up to 10-8 mbar. The product is packed in a plastic bag and sealed by protective plastic caps.This product is compatible with alternative supplier’s products and is manufactured to the ISO standards.
ISO80 45 Degree Bend Elbow
SKU: ISO80EL45
ISO 45 Degree Bend Elbows are used to change the direction of the pipework as required.

Manufactured from: 304 stainless steel. Helium Leak tested to 10-8 mbar. ISO 45 Degree Bend Elbows are supplied in a sealed plastic bag with protective plastic caps.

ISO 45 Degree Bend Elbows are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO80 Bored 89mm Fixed Bolted Flange
SKU: ISO80F89
ISO Fixed Bolted Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Bored Flanges are supplied in a plastic bag.ISO Fixed Bolted Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 70.25 70.25 GBP
ISO80 Fixed Bolted Blank Flange
SKU: ISO80FBK
ISO Fixed Bolted Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Blank Flanges are supplied in a plastic bag.ISO Fixed Bolted Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 61.25 61.25 GBP

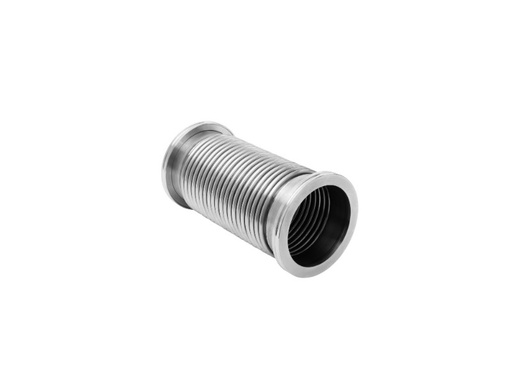

ISO80 - 1000mm Long - Flexible Vacuum Hoses - SS
SKU: ISO80FX1000
ISO Flexible Vacuum Hoses are used to connect parts together when a solid straight connector is impractical or where the two parts move independently and flexibility is required.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. ISO Flexible Vacuum Hoses are supplied in a plastic bag with protective plastic caps.ISO Flexible Vacuum Hoses are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 310.00 310.0 GBP
ISO80 - 250mm Long - Flexible Vacuum Hoses - SS
SKU: ISO80FX250
ISO Flexible Vacuum Hoses are used to connect parts together when a solid straight connector is impractical or where the two parts move independently and flexibility is required.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. ISO Flexible Vacuum Hoses are supplied in a plastic bag with protective plastic caps.ISO Flexible Vacuum Hoses are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 225.00 225.0 GBP
ISO80 - 500mm Long - Flexible Vacuum Hoses - SS
SKU: ISO80FX500
ISO Flexible Vacuum Hoses are used to connect parts together when a solid straight connector is impractical or where the two parts move independently and flexibility is required.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. ISO Flexible Vacuum Hoses are supplied in a plastic bag with protective plastic caps.ISO Flexible Vacuum Hoses are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO80 - 750mm Long - Flexible Vacuum Hoses - SS
SKU: ISO80FX750
ISO Flexible Vacuum Hoses are used to connect parts together when a solid straight connector is impractical or where the two parts move independently and flexibility is required.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. ISO Flexible Vacuum Hoses are supplied in a plastic bag with protective plastic caps.ISO Flexible Vacuum Hoses are manufactured to the ISO Standard and are compatible with other supplier’s product.

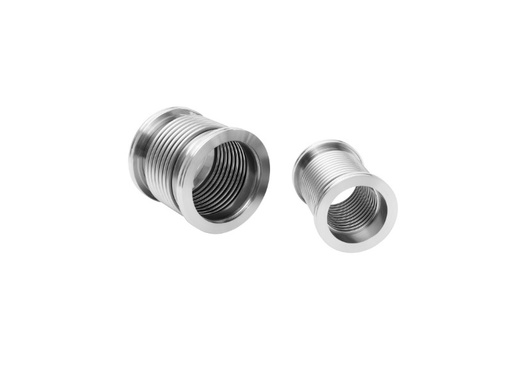

ISO80 Hydroformed Flexible Bellows, SS
SKU: ISO80FXB
ISO Hydroformed Flexible Bellows are used to connect parts together when a solid straight connector is impractical or where the two parts move independently and flexibility is required.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. ISO Hydroformed Flexible Bellows are supplied in a plastic bag with protective plastic caps.ISO Hydroformed Flexible Bellows are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 193.00 193.0 GBP

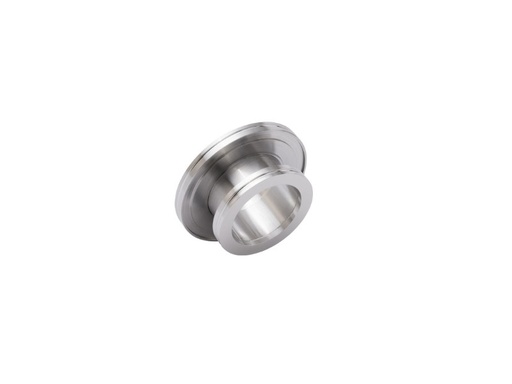

ISO80 to ISO63 Tubulated Reducing Connector
SKU: ISO80R63
ISO Straight Connectors are used to extend ports and pipework to a required length.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. Straight Connectors are supplied in a plastic bag with protective plastic caps.The Straight Connectors are manufactured to the ISO Standard and are compatible with other supplier’s product.

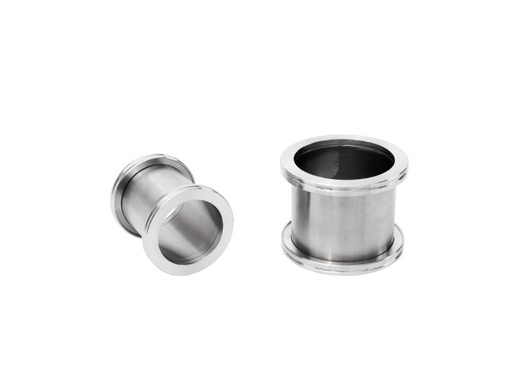

ISO80 Straight Connector
SKU: ISO80SC
ISO Straight Connectors are used to extend ports and pipework to a required length.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. Straight Connectors are supplied in a plastic bag with protective plastic caps.The Straight Connectors are manufactured to the ISO Standard and are compatible with other supplier’s product.

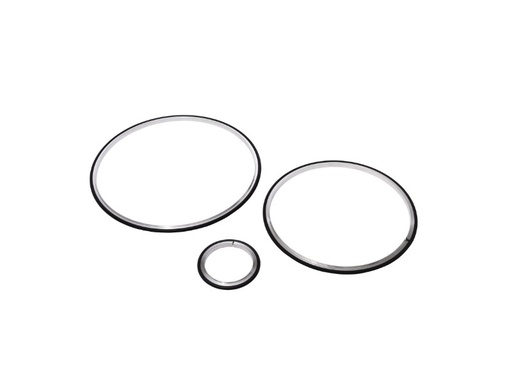

ISO80 Stainless Steel Centering Ring with Nitrile O-Ring
SKU: ISO80SNCR
ISO Stainless Steel Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel and Nitrile. ISO Stainless Steel Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Stainless Steel Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 15.20 15.200000000000001 GBP
ISO80 Stainless Steel Trapped Centering Ring - Aluminium Outer
SKU: ISO80SNCRT
ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel and Nitrile. ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

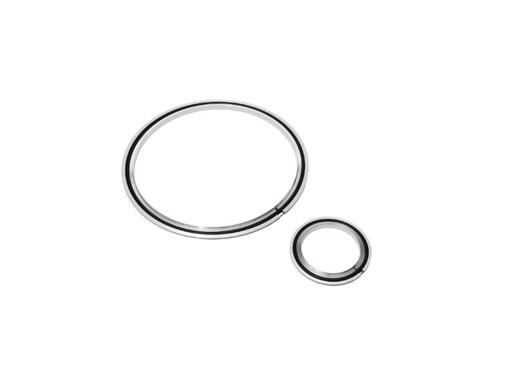

ISO80 Stainless Steel Trapped Centering Ring with Viton O-Ring - Aluminium Outer
SKU: ISO80SVCRT
ISO Stainless Steel Trapped Centering Rings with Viton O Rings and Aluminium outers are used to connect two flanges together and create a vacuum seal with the use of a clamp.

Manufactured from: Stainless Steel, Viton & Aluminium. ISO Stainless Steel Trapped Centering Rings with Viton O Rings are supplied in sealed plastic bags.

ISO Stainless Steel Trapped Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 12.07 12.07 GBP

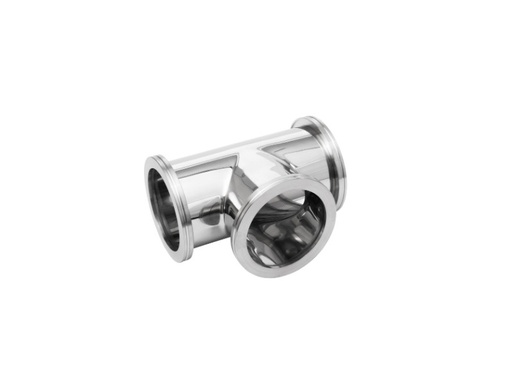

ISO80 Tee
SKU: ISO80TE
ISO Tees are used to bring in a branch line of the same size into a main line.

Manufactured from: 304 stainless steel. Helium Leak tested to 10-8 mbar. ISO Tees are supplied in a sealed plastic bag with protective plastic caps.

ISO Tees are manufactured to the ISO Standard and are compatible with other supplier’s product.
