ISO Fittings

ISO Fittings


The ISO ranges of flanges and fittings are manufactured from high quality stainless steel.

There are various types of ISO flanges:

  1. ISO-K (clamp) flanges with a grooved ring for inserting wall clamps and double claw clamps are smaller and less expensive.
  2. ISO-F (fixed) flanges with a set of through-bore holes are pressed together with standard bolts. They are more stable than ISO-K flanges which enable them to mechanically support parts of the vacuum chamber.
  3. ISO bolt rings are used to make an ISO-K flange and ISO-F flange.
  • Material: 304L Stainless steel
  • Bakeable to 200’C (150’C continuous)
  • Vacuum rating 1×10-8mbar
  • Wide ranges of Elbows, Crosses & Tees are available
  • Bored Flanges Are Available For Welding To Stainless Steel Tube
ISO500 Bored 508mm Fixed Bolted Flange
SKU: ISO500F508
ISO Fixed Bolted Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Bored Flanges are supplied in a plastic bag.ISO Fixed Bolted Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO500 Fixed Bolted Blank Flange
SKU: ISO500FBK
ISO Fixed Bolted Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Blank Flanges are supplied in a plastic bag.ISO Fixed Bolted Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO500 Straight Connector
SKU: ISO500SC
ISO Straight Connectors are used to extend ports and pipework to a required length.Manufactured from: 304 Stainless Steel. Helium Leak tested to 10-8 mbar. Straight Connectors are supplied in a plastic bag with protective plastic caps.The Straight Connectors are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO500 Stainless Steel Centering Ring with Nitrile O-Ring
SKU: ISO500SNCR
ISO Stainless Steel Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel and Nitrile. ISO Stainless Steel Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Stainless Steel Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO500 Stainless Steel Trapped Centering Ring - Aluminium Outer
SKU: ISO500SNCRT
ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel and Nitrile. ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Stainless Steel Trapped Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

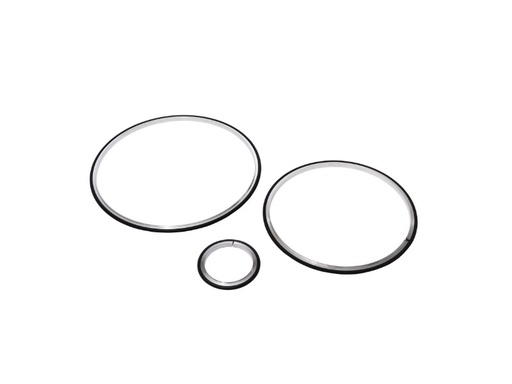

ISO500 Stainless Steel Centering Rings with Viton O-Rings
SKU: ISO500SVCR
ISO Stainless Steel Centering Rings with Viton O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel and Viton. ISO Stainless Steel Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Stainless Steel Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 311.43 311.43 GBP

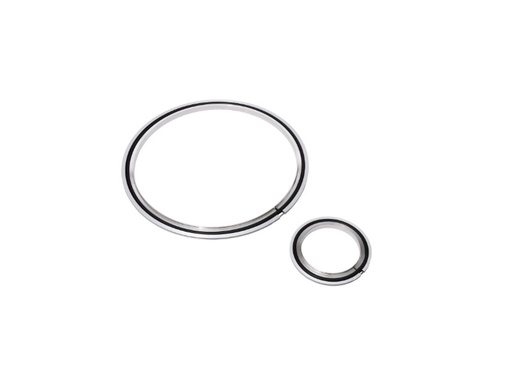

ISO500 Stainless Steel Trapped Centering Ring with Viton O-Ring - Aluminium Outer
SKU: ISO500SVCRT
ISO Stainless Steel Trapped Centering Rings with Viton O Rings and Aluminium outers are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Stainless Steel, Viton & Aluminium. ISO Stainless Steel Trapped Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Stainless Steel Trapped Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 311.43 311.43 GBP

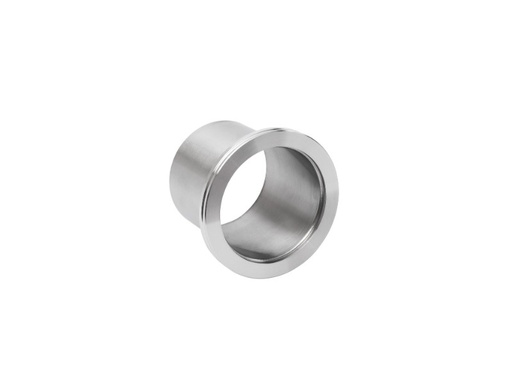

ISO500 Claw Clamp Tubulation Fixed
SKU: ISO500TU
ISO Claw Clamp Tubulations are used to weld into other fabricated parts to produce ports for instruments and feedthrough attachments.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Tubulations are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Tubulations are manufactured to the ISO Standard and are compatible with other supplier’s product.
£ 777.50 777.5 GBP
ISO63/100 Double Claw Clamps Aluminium
SKU: ISO63/100DCA
ISO Double Claw Clamps Aluminium are used to clamp two flanges to a Centering ring and O Ring creating a vacuum seal

Manufactured from: Aluminium. ISO Double Claw Clamps Aluminium are supplied in sealed plastic bags.

ISO Double Claw Clamps Aluminium are manufactured to the ISO standard and are compatible with other supplier’s products
£ 1.99 1.99 GBP

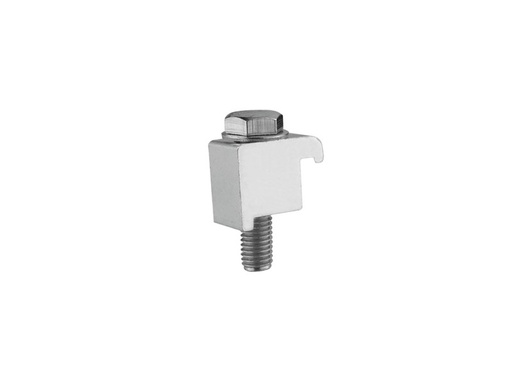

ISO63/100 Wall Clamps Aluminium
SKU: ISO63/100WCA
ISO Wall Clamps Aluminium are used to Clamp two flanges to a Centering ring and O Ring creating a vacuum seal

Manufactured from: Aluminium. ISO Wall Clamps Aluminium are supplied in sealed plastic bags.

ISO Wall Clamps Aluminium are manufactured to the ISO standard and are compatible with other supplier’s products
£ 2.14 2.14 GBP
ISO63/100 Wall Clamps Mild Steel, Zinc Plated
SKU: ISO63/100WCMS
ISO Wall Clamps Mild Steel, Zinc Plated are used to Clamp two flanges to a Centering ring and O Ring creating a vacuum seal

Manufactured from: Mild steel zinc plate. ISO Wall Clamps Mild Steel, Zinc Plated are supplied in sealed plastic bags.

ISO Wall Clamps Mild Steel, Zinc Plated are manufactured to the ISO standard and are compatible with other supplier’s products
£ 2.26 2.2600000000000002 GBP
ISO63/100 Wall Clamps, Steel Nuts And Washers, Aluminium
SKU: ISO63/100WCN
ISO Wall Clamps are used to clamp two flanges to a Centering Ring and O-ring creating a vacuum seal

Manufactured from: Aluminium. ISO Wall Clamps are supplied in sealed plastic bags.

ISO Wall Clamps are manufactured to the ISO standard and are compatible with other supplier’s products
£ 2.66 2.66 GBP
ISO63/100 Wall Clamps Stainless Steel
SKU: ISO63/100WCSS
ISO Wall Clamps Stainless Steel are used to clamp two flanges to a Centering ring and O Ring creating a vacuum seal

Manufactured from: 304 stainless steel. ISO Wall Clamps Stainless Steel are supplied in sealed plastic bags.

ISO Wall Clamps Stainless Steel are manufactured to the ISO standard and are compatible with other supplier’s products
£ 2.95 2.95 GBP

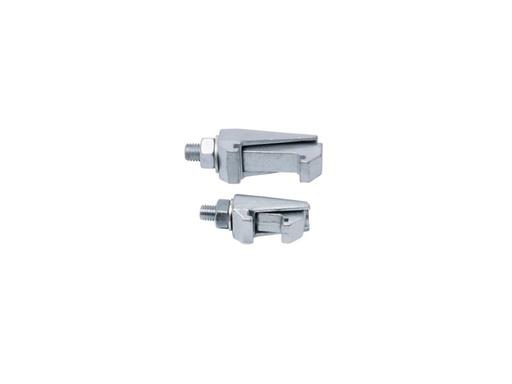

ISO63/250 Double Claw Clamps, Mild Steel, Zinc Plated
SKU: ISO63/250DCMS
ISO Double Claw Clamps are used to clamp two flanges to a Centering Ring and O-ring creating a vacuum seal

Manufactured from: Mild steel and Zinc Plate. ISO Double Claw Clamps mild steel are supplied in sealed plastic bags.

ISO Double Claw Clamps mild steel are manufactured to the ISO standard and are compatible with other supplier’s products
£ 4.95 4.95 GBP
ISO630 Aluminium Centering Ring With Nitrile O-Ring
SKU: ISO630ANCR
ISO Aluminium Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Nitrile. ISO Aluminium Centering Rings with Nitrile O rings are supplied in sealed plastic bags.ISO Aluminium Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO630 Aluminium Trapped Centering Ring with Nitrile O-Ring
SKU: ISO630ANCRT
ISO Aluminium Trapped Centering Rings with Nitrile O Rings & Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Nitrile. ISO Aluminium Trapped Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO630 Aluminium Centering Rings with Viton O-Rings
SKU: ISO630AVCR
ISO Aluminium Centering Rings with Viton O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO630 Aluminium Trapped Centering Ring with Viton O Rings
SKU: ISO630AVCRT
ISO Trapped Centering Rings with Viton O Rings and Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Trapped Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO630 Claw Clamp Blank Flange
SKU: ISO630BK
ISO Claw Clamp Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Blank Flanges are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
ISO630 Double Claw Clamps, Mild Steel, Zinc Plated
SKU: ISO630DCMS
ISO Double Claw Clamps are used to clamp two flanges to a Centering Ring and O-ring creating a vacuum seal

Manufactured from: Mild steel and Zinc Plate. ISO Double Claw Clamps mild steel are supplied in sealed plastic bags.

ISO Double Claw Clamps mild steel are manufactured to the ISO standard and are compatible with other supplier’s products
£ 5.99 5.99 GBP
