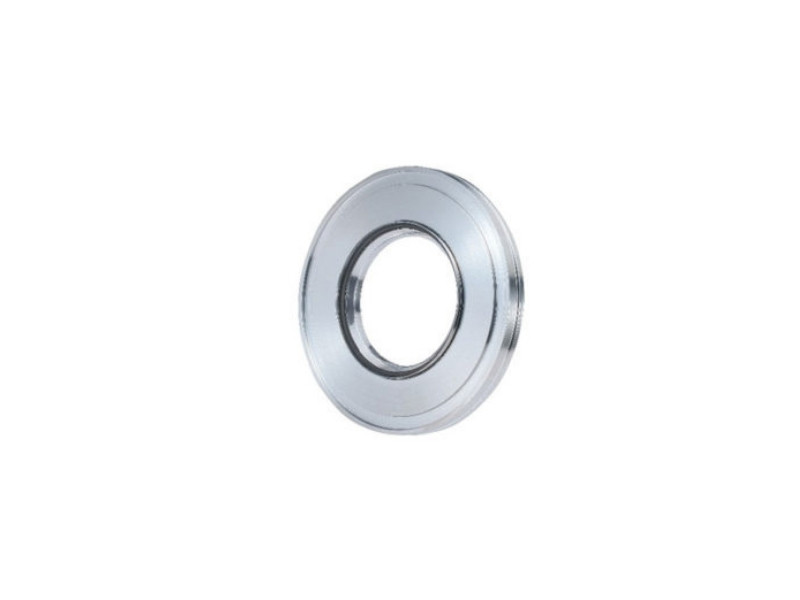

ISO100 Vacuum Viewport

ISO100 Vacuum Viewport

ISO Vacuum Viewports are used to view the interior of the vacuum chamber and view the process and/or manipulation.

Manufactured from: 304L Stainless Steel. Helium leak tested to 10-10 mbar. ISO Vacuum Viewports are supplied in a sealed plastic bag with protective plastic caps.

The ISO Vacuum Viewports are manufactured to the ISO Standard and are compatible with other supplier’s product.

• Bakeable up to 150°C at not greater than 2-3 °C per minute
• Wide range of ISO Elbows, ISO Crosses, ISO Tees, ISO Flanges and ISO Adapters are available
• Tubulated Vacuum Flanges are available for welding to a stainless steel tube
• Vacuum Rating 1×10-9 mbar

FlangeSize
Material
Viewport Optic

This combination does not exist.

SKU: VPZ-ISO100

ISO Vacuum Viewports

FlangeSize: ISO100

Material: 304L

Viewport Optic: Corning 7056 glass Kodial

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.
