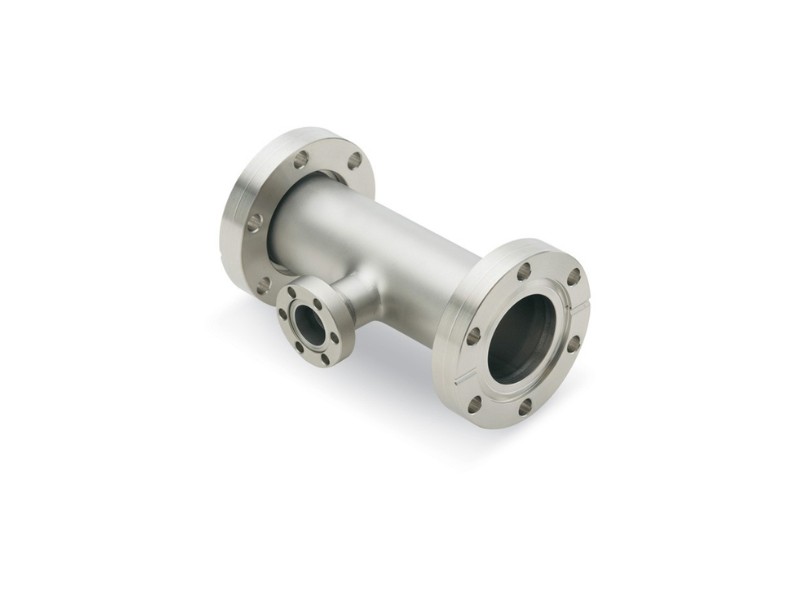

CF150 to CF63 Unequal Tee Fixed

https://ultrahighvacuum.com/web/image/product.template/34578/image_1920?unique=fde06fb

CF Unequal Tees Fixed are used to bring a Branch line of a different size into a main line.

Manufactured from: 304L stainless steel. Helium leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.

CF Unequal Tees Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: stainless steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows and crosses are available

Not Available For Sale

  • FlangeSize
  • Fixed/Rotatable
  • Material
  • Flange conversion from/to

This combination does not exist.

SKU: UTE1563
Contact Us
Fixed CF Unequal Tees
FlangeSize: CF150 to CF63
Fixed/Rotatable: Fixed
Material: 304L
Flange conversion from/to: CF to CF unequal

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.


If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
