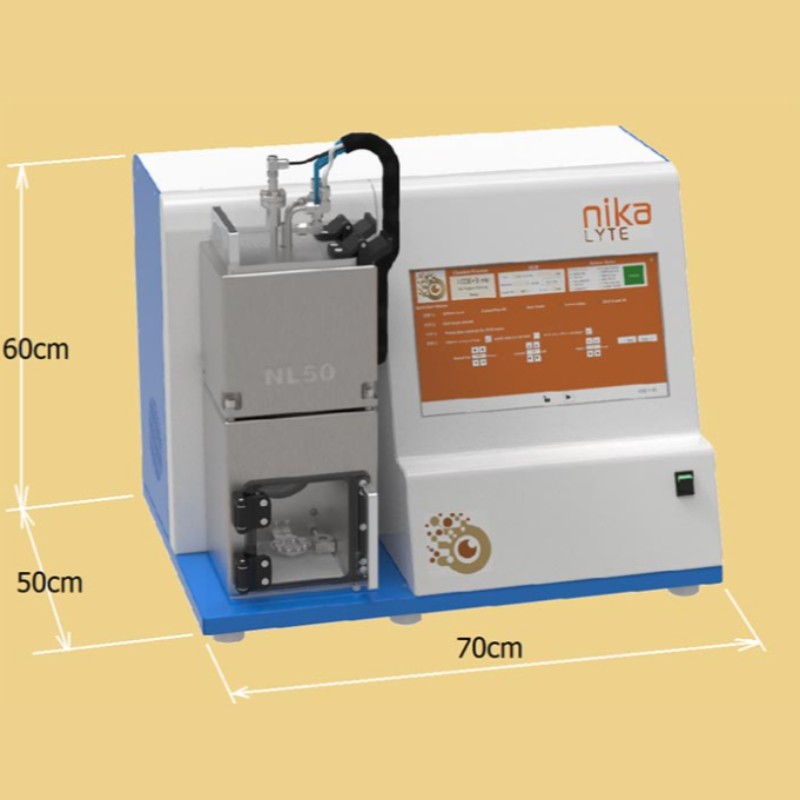

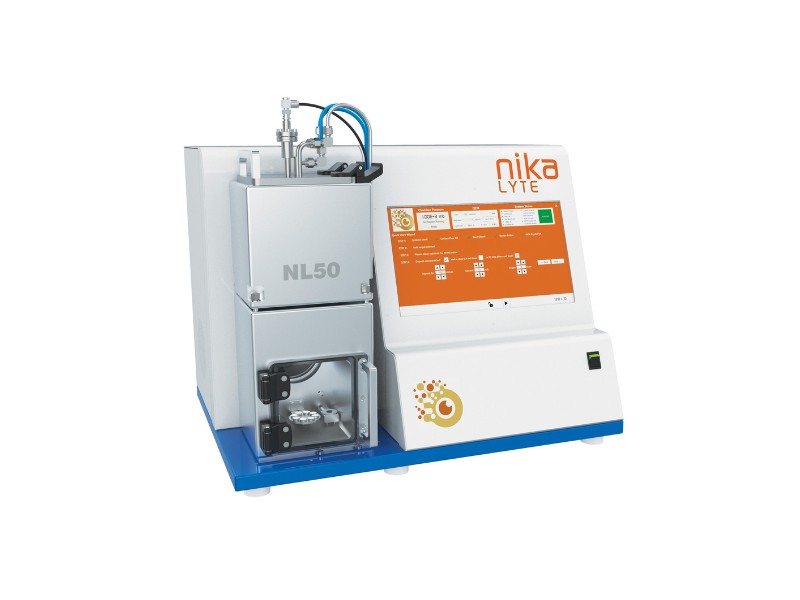

NL50 Benchtop Nanoparticle Deposition System

https://www.ultrahighvacuum.com/web/image/product.template/35481/image_1920?unique=40afc58

The NL50 is a benchtop vacuum system which deposits ultra-pure non-agglomerated nanoparticles directly on to any surface up to 50mm diameter. The NL50 is specifically designed for shared research or teaching laboratory, where it can be used by students and researchers in parallel on a diverse range of nanotechnology projects without fear of cross contamination. Applications include catalysis, photonics, energy storage, sensors, and life sciences.

Key Features:

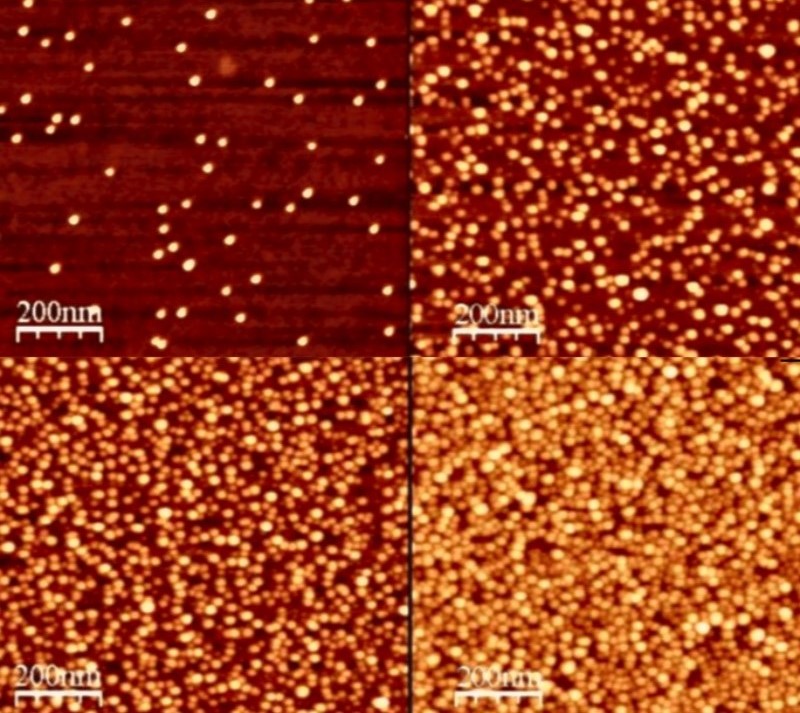

-Deposit hydrocarbon free and non-agglomerated nanoparticles
-From sub-monolayer to high porosity 3-D nanocoating
-Surface plasma cleaning and functionalisation
-Generate pure metallic or compound nanoparticles such as oxides and nitrides.

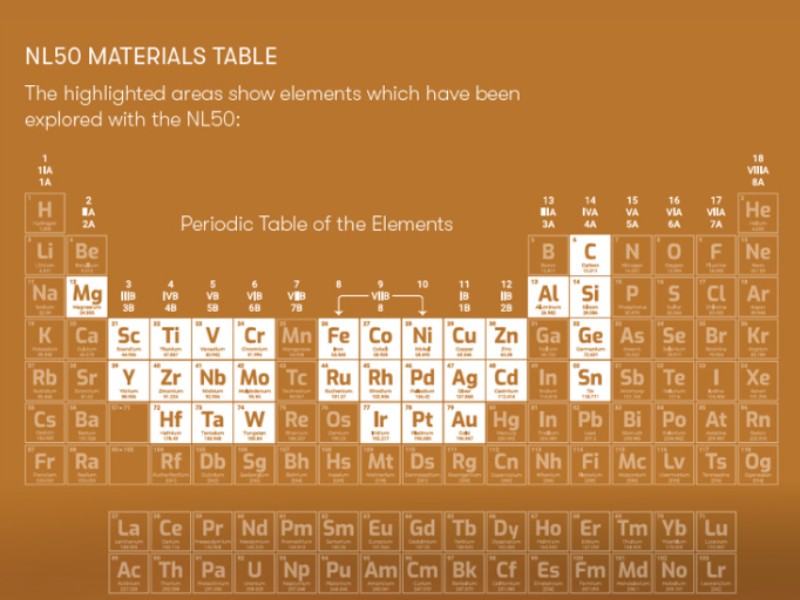

-Wide choice of materials, including Ag, Au, Cu, Ni, Ir, and Pt

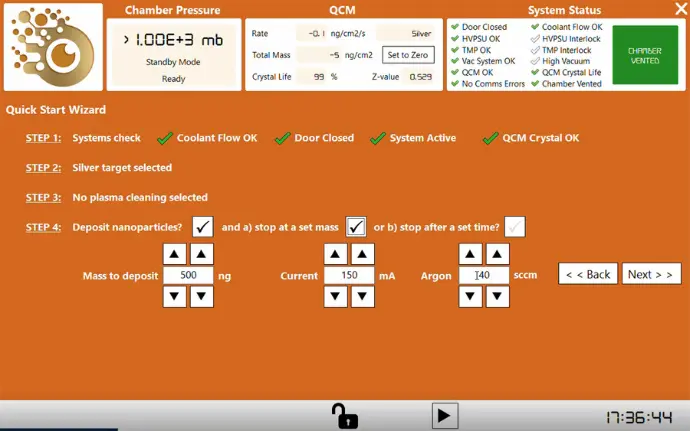

-Real time deposition control using a Quartz Crystal Microbalance(QCM)
-Repeatable process with typical cycle time of 30 minutes
-Room temperature deposition is compatible with delicate substrates such as graphene, membranes and plastics

Not Available For Sale

This combination does not exist.


SKU: NL-50
