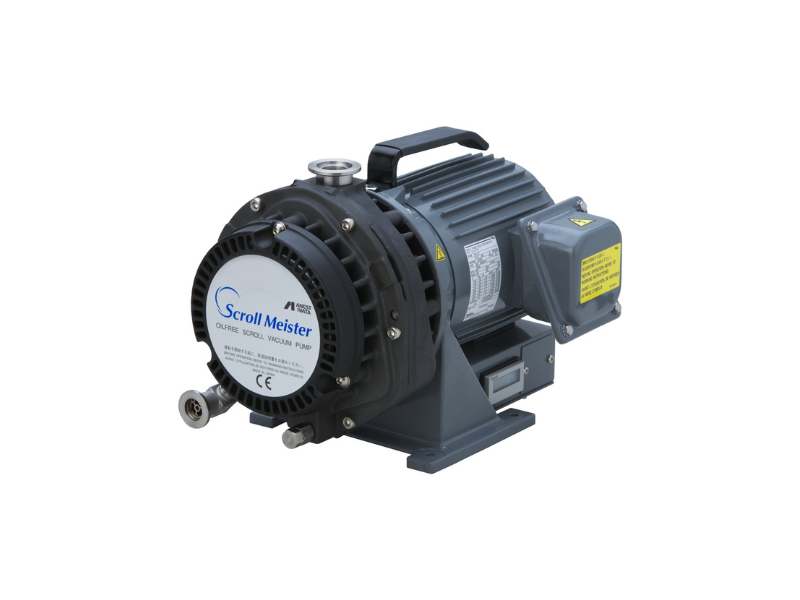

Dry/Oil-free scroll vacuum pump, 90 L/min, Single Phase
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.
Specification:
Noise level: 52 db
Pump Speed: 90
Final pressure (50Hz): 5
Motor power (kW): 0.15
Voltage: 100,115,200,230 (With temperature protection)
Weight: 14
Water vapor capacity (g/Tag): 5 (with air flushing)
Air flushing (L/min): 9
Inlet connection NW: 25
Outlet connection NW: 16
Cooling system: Air-cooled
Ambient temperature (°C): 5~40
| Pumping Speed: 90L/min |
| Phase: Single phase |
