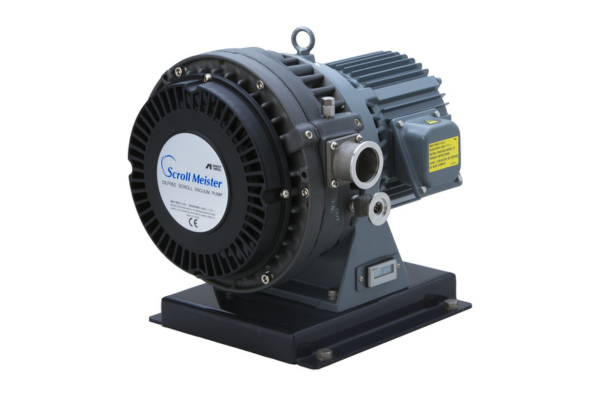

Dry/Oil-free scroll vacuum pump, 500 L/min, Single Phase, Horizontal Inlet
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.
Specification:
Noise level: 60 (68 with air flushing)
Pump Speed: 500 L/min
Final pressure (50Hz): 1
Motor power (kW): 0.6
Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
Voltage Third Phase: 200,208,230,380,450,460
Weight Single Phase: 44kg
Weight Third Phase: 38kg
Water vapor capacity (g/Tag): 25 (with air flushing)
Air flushing (L/min): 10 L/min
Inlet connection NW: 40
Outlet connection NW: 25
Cooling system: Air-cooled
Ambient temperature (°C): 5~40
| Pumping Speed: 500L/min |
| Inlet: Horizontal |
| Phase: Single phase |
