Dry/Oil-free scroll vacuum pump, 250 L/min, Single Phase, Vertical Inlet

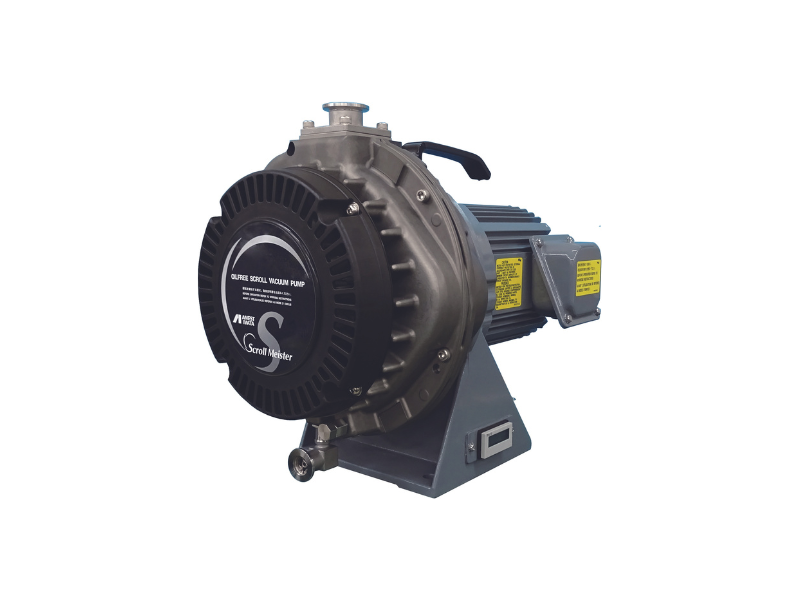

ANEST IWATA Oil Free Scroll Vacuum Pump, ISP-250E-SV, Single Phase, Vertical Inlet, 250 L/Min

Dry/Oil-free scroll vacuum pump, 250 L/min, Single Phase, Vertical Inlet

ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise Level: 58 (66 with air flushing)
• Pump Speed: 250 L/min
• Final Pressure (50Hz): 1.6
• Motor Power (kW): 0.4
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Three Phase: 200, 208, 230, 380, 350, 460
• Weight Single Phase: 25
• Weight Third Phase: 23
• Water Vapor Capacity (g/Tag): 25 (with air flushing)
• Air Flushing (L/min): 10
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5 ~ 40

£ 4,886.95 4886.95 GBP £ 4,886.95

£ 4,886.95

Pumping Speed
Inlet
Phase

This combination does not exist.

SKU: ISP-250E-SV

Pumping Speed: 250L/min

Inlet: Vertical

Phase: Single phase

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
