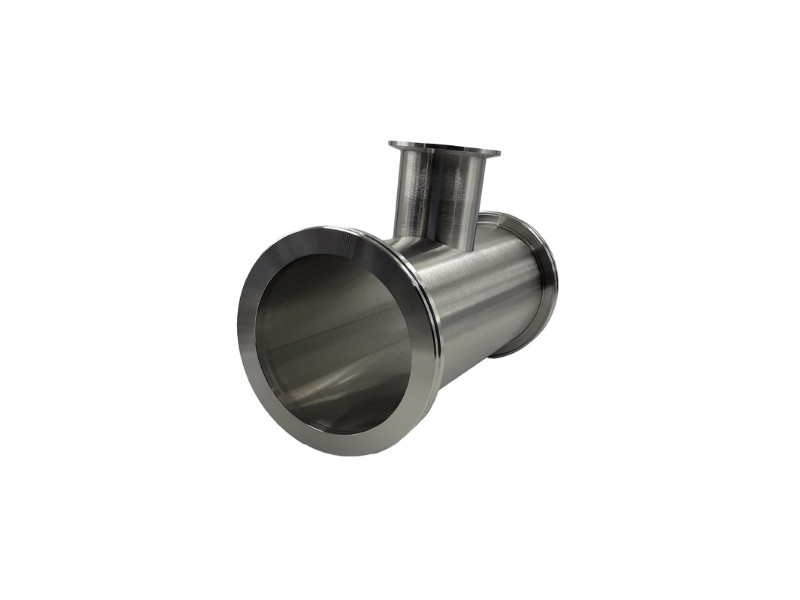

ISO160 to KF40 Reducing Tee

ISO160 to KF40 Reducing Tee

ISO to KF Reducing Tees are used to bring in a branch line of a different size into a main line.

Manufactured from: 304 stainless steel. Helium leak tested to 10-8 mbar. ISO to KF Reducing Tees are supplied in a sealed plastic bag with protective plastic caps.

ISO to KF Reducing Tees are manufactured to the ISO Standard and are compatible with other supplier’s product.

FlangeSize
Material
Flange conversion from/to

This combination does not exist.

SKU: ISO160TE40

ISO to KF Reducing Tees

FlangeSize: ISO160 to KF40

Material: 304

Flange conversion from/to: ISO to KF reducing

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
