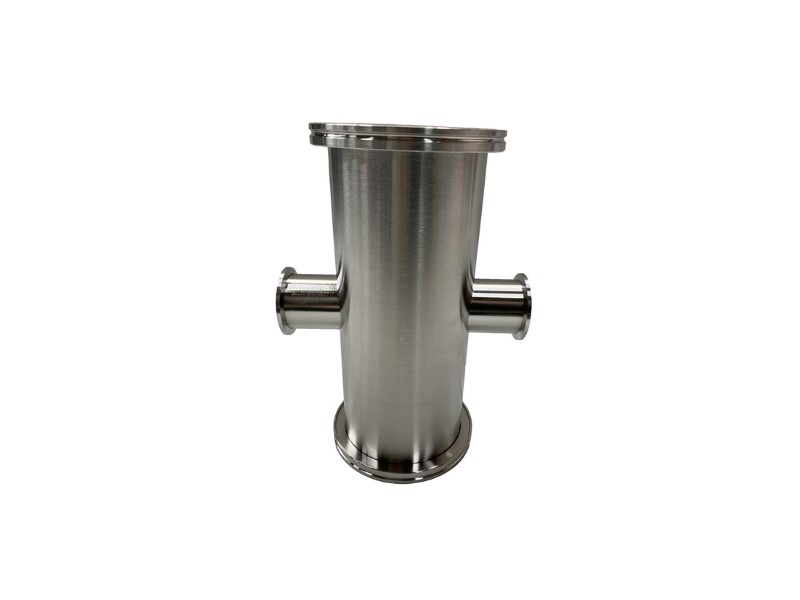

ISO100 to KF40 Reducing Cross

ISO100 to KF40 Reducing Cross

ISO to KF Reducing Crosses are used to join two different branch lines of various sizes into a single main line.

Manufactured from: 304 Stainless Steel. Helium leak tested to 10-8 mbar. ISO to KF Reducing Crosses are supplied in a sealed plastic bag and protected with plastic caps.

ISO to KF Reducing Crosses are compatible with other supplier’s products and are manufactured to the ISO Standard.

FlangeSize
Material
Flange conversion from/to
Configuration

This combination does not exist.

SKU: ISO100X40

ISO to KF Reducing Crosses

FlangeSize: ISO100 to KF40

Material: 304

Flange conversion from/to: ISO to KF reducing

Configuration: 4-way

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
