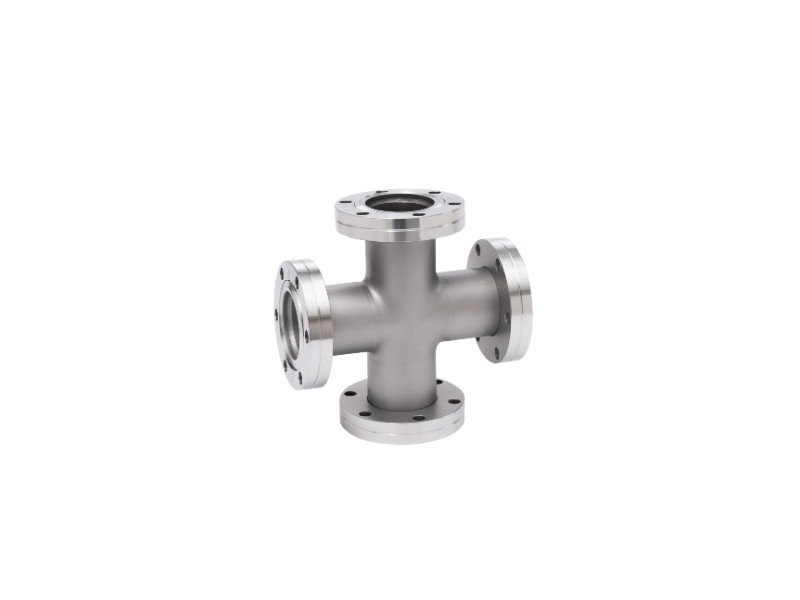

CF150 4 Way Cross Fixed

http://78.157.209.205:8069/web/image/product.template/34878/image_1920?unique=fde06fb

CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line.

Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.

CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: stainless steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows and tees are available

Not Available For Sale

  • FlangeSize
  • Fixed/Rotatable
  • Material
  • Flange conversion from/to
  • Configuration

This combination does not exist.

SKU: X150
Contact Us
Fixed CF 4-Way Crosses
FlangeSize: CF150
Fixed/Rotatable: Fixed
Material: 304L
Flange conversion from/to: CF to CF equal
Configuration: 4-way

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.
