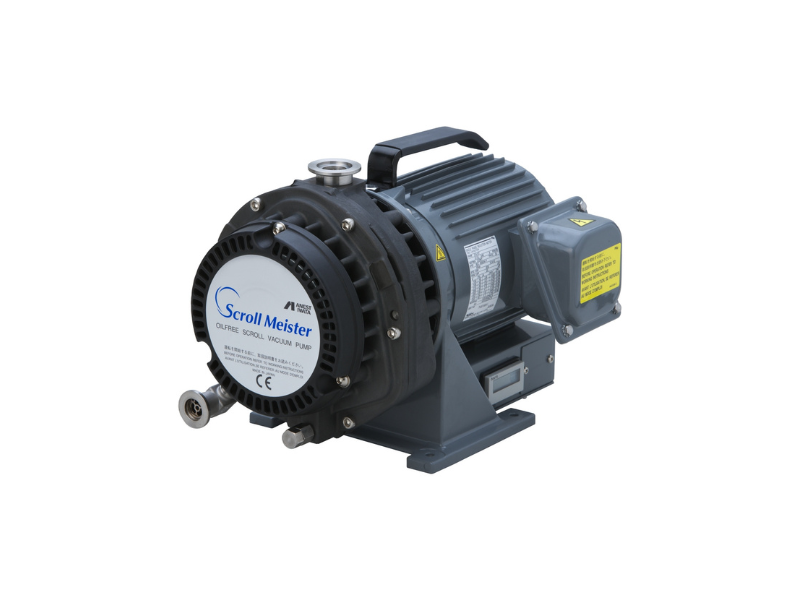

Dry/Oil-free scroll vacuum pump, 90 L/min, Single Phase
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.
Specification:
• Noise Level: 52 db
• Pump Speed: 90
• Final Pressure (50Hz): 5
• Motor Power (kW): 0.15
• Voltage: 100, 115, 200, 230 (with temperature protection)
• Weight: 14
• Water Vapor Capacity (g/Tag): 5 (with air flushing)
• Air Flushing (L/min): 9
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5~40
| Pumping Speed: 90L/min |
| Phase: Single phase |
