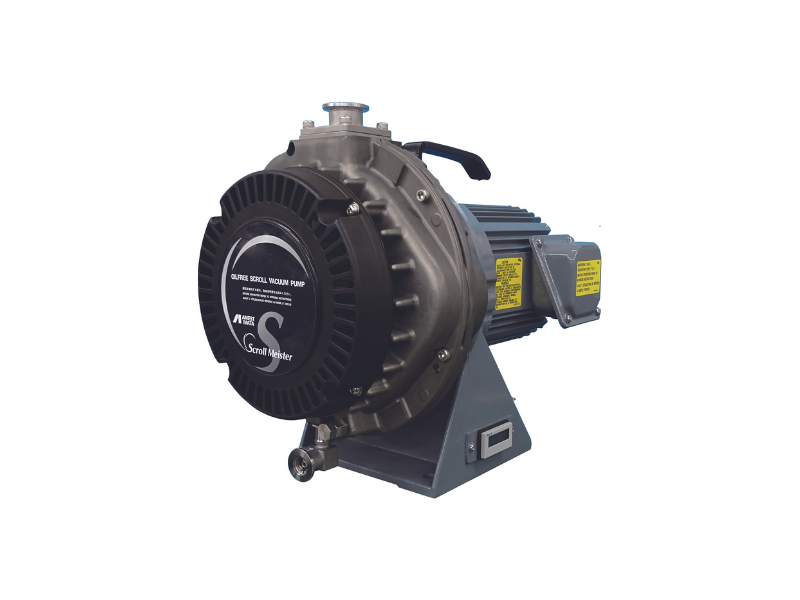

Dry/Oil-free scroll vacuum pump, 250 L/min, Three Phase, Vertical Inlet
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.
Specification:
Noise level: 58 (66 with air flushing)
Pump Speed: 250 L/min
Final pressure (50Hz): 1.6
Motor power (kW): 0.4
Voltage Single Phase: 100, 115, 200, 230 (with temperature protection).
Voltage Three Phase: 200, 208, 230, 380, 350, 460
Weight Single Phase: 25
Weight Third Phase: 23
Water vapor capacity (g/Tag): 25 (with air flushing)
Air flushing (L/min): 10
Inlet connection NW: 25
Outlet connection NW: 16
Cooling system: Air-cooled
Ambient temperature (°C): 5 ~ 40
| Pumping Speed: 250L/min |
| Inlet: Vertical |
| Phase: Three phase |
