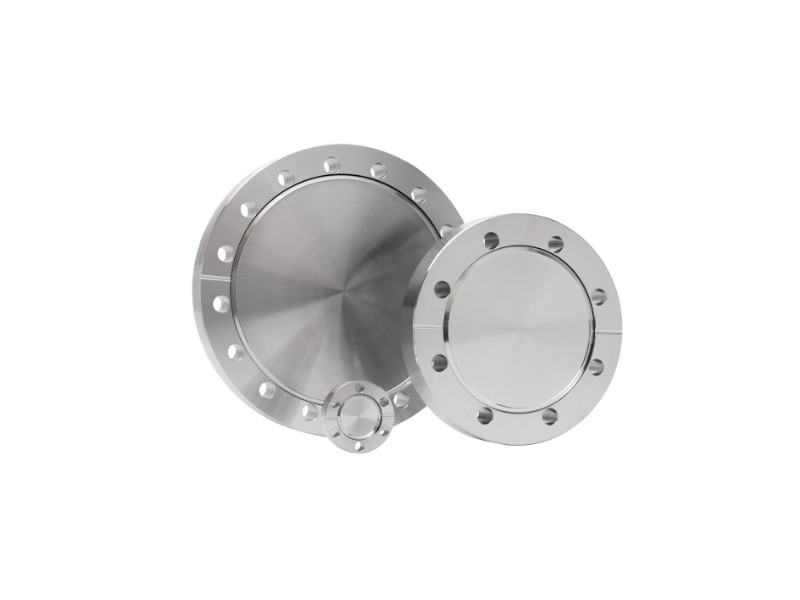

CF35 Rotatable Blank CF Flange
CF Rotatable Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.
Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.
CF Rotatable Blank Flanges are manufactured to the CF Standard and are compatible with other supplier’s product.
Material: 304L stainless steel as standard, 316L and other materials can be supplied
Bakeable to 450°C
Vacuum rating 1×10-11 mbar
Wide range of elbows, crosses, tees and adaptors are available
Tubulated flanges are available for welding to stainless steel tube
* European standard, to be used with copper gasket OD 272.7 mm
| Blank/Bored: Blank |
| FlangeSize: CF35 |
| Fixed/Rotatable: Rotatable, Rotatable |
| Material: 304L, 304L |
| Bolt Holes: Un-tapped |
