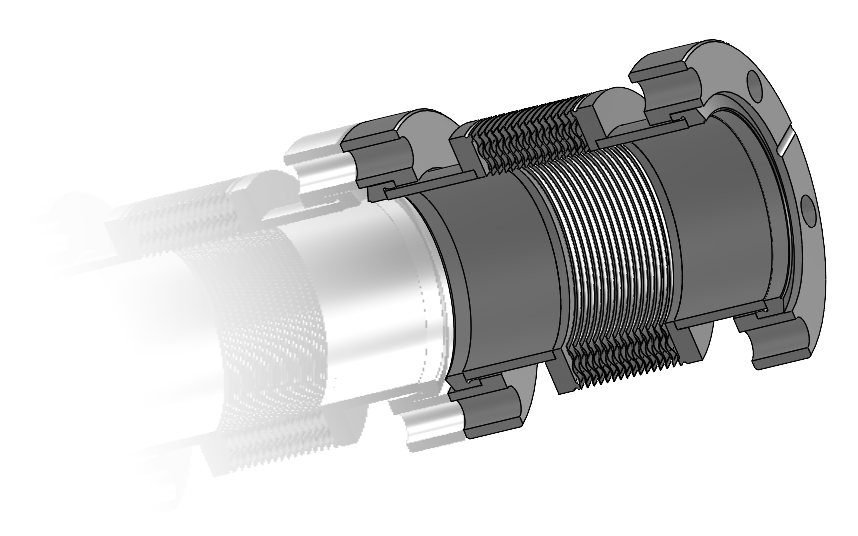

76-120 Edge Welded Bellows - I.D:63 O.D:85 Stroke:44

76-120 Edge Welded Bellows - I.D:63 O.D:85 Stroke:44

Concept Vacuum supply CF flanged edge-welded bellows for high vacuum and ultra-high vacuum systems using 316L stainless steel bellows and 304L stainless steel CF flanges. Edge-welded bellows provide a compact, highly flexible solution where movement, alignment adjustment, vibration isolation or thermal expansion compensation is required.

Unlike hydraulically formed metal hoses, edge-welded bellows allow for greater axial flexibility and naturally return towards their free length when not under vacuum, typically settling between their compressed and extended lengths. Supplied with CF flanges, these assemblies are compatible with the most widely used connection system UHV equipment, including gauges, instruments, accessories, and feedthroughs.

£ 610.00 610.0 GBP £ 610.00

£ 610.00

This combination does not exist.

SKU: 320024

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
