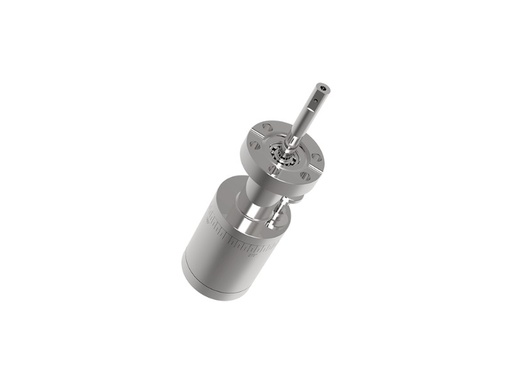

Magnetically coupled rotary feedthroughs utilise a failsafe design that cannot be damaged by ‘over-torque’, compared to the more vulnerable bellows-sealed devices. The outer magnetic sleeve is engraved with a laser etched scale, incremented at 5° intervals. Magnetically coupled rotary feedthroughs provide practical and economical solutions for most applications requiring rotary motion in high or ultra-high vacuum environments, such as window baffles, sample parking stages, etc.

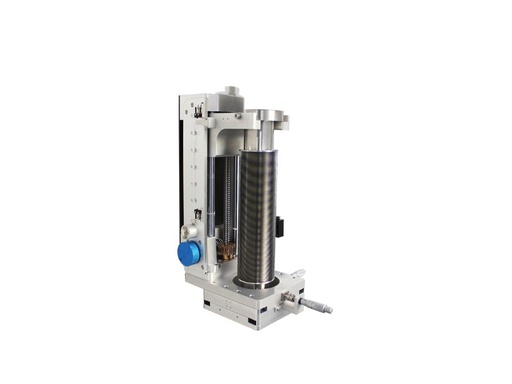

The medium-sized three-dimensional translation stage has high maneuverability and can make the welding bellows move in three directions of X, Y, and Z. X/Y direction adopts crossed roller and ball screw structure, which is strong and compact. The Z direction adopts the combined structure of the optical axis and the ball screw. The product is a modular product with multiple configurations to choose from.
Welcome to call for more information.

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

● Working Pressure：10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10um Resolution
● Z-motion scale in 1mm increment
● Top mounting flange: CF35, tapped hole
● Bottom mounting flange: CF63, clear hole

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

● Working Pressure：10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10um Resolution
● Z-motion scale in 1mm increment
● Top mounting flange: CF35, tapped hole
● Bottom mounting flange: CF63, clear hole

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

● Working Pressure：10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10um Resolution
● Z-motion scale in 1mm increment
● Top mounting flange: CF35, tapped hole
● Bottom mounting flange: CF63, clear hole

The 2D translation stage is robust, allows installation in any orientation, is ultra-high vacuum compatible, and provides precise motion. The two-dimensional translation stage includes two parallel flanges, one end is fixed and the other end provides movement. The positioning is performed by adjusting the position of the moving flange relative to the fixed mounting flange, and the movement of the moving flange is controlled by a differential head. Welded bellows allow the flange to accommodate the required movement while ensuring an all-metal sealed vacuum.

● Working Pressure: 10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10μm Resolution
● Mounting flange on both sides: CF35, tapped hole
