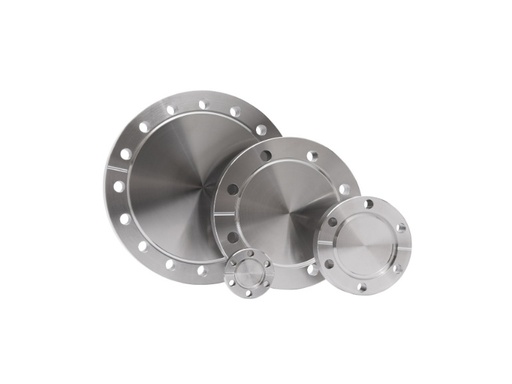

CF Fittings

CF Vacuum Fittings on this site comply with the ISO 3669 standard and CF Vacuum Fittings up to NW200 are compatible with ConFlat flanges and CF flanges from other leading manufacturers.

While there is no general standard for CF flanges NW250 and over, essentially two “standards” have come into use, one Anglo-American and one European, both of which are available in our product line. Other standards are also used by some other manufacturers and in use at some research centres.

Due to UHV bakeability requirements, sealing of the CF flanges is provided by use of Oxygen-free copper (OFHC) flat gasket rings which usually can only be used once due to deformation. The tightening pressure is exerted by through-bore screws that have to be tightened uniformly and crosswise to avoid excessive strain.

Material: 304L stainless steel as standard, 316L and other materials can be supplied upon request
Bakeable to 450°C
Vacuum rating 1×10-11mbar
Wide ranges of elbows, crosses, tees and adaptors are available
Tubulated flanges are available for welding to stainless steel tube

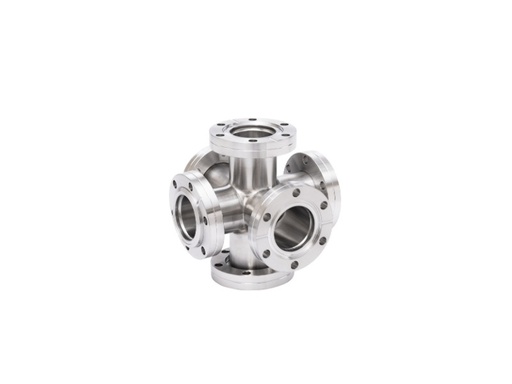

CF35 - 6 Way Cross Fixed SKU: XX35 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF35 - 6 Way Cross 2 Flanges Rotatable SKU: XX35R CF 6 Way Crosses are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 6 Way Cross, manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF63 - 6 Way Cross Fixed SKU: XX63 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF63 6 Way Cross 2 Flanges Rotatable SKU: XX63R CF63 – 6 Way Cross 2 Flanges Rotatable CF 6 Way Crosses are used to bring in four branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps. The CF 6 Way Cross, manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available
CF100 to CF35 Zero Length Flange Adaptor SKU: ZL1035 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF100 to CF63 Zero Length Flange Adaptor SKU: ZL1063 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF150 to CF100 Zero Length Flange Adaptor SKU: ZL1510 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF150 to CF35 Zero Length Flange Adaptor SKU: ZL1535 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available
CF150 to CF63 Zero Length Flange Adaptor SKU: ZL1563 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF200 to CF100 Zero Length Flange Adaptor SKU: ZL2010 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF200 to CF150 Zero Length Flange Adaptor SKU: ZL2015 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF200 to CF35 Zero Length Flange Adaptor SKU: ZL2035 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available
CF200 to CF63 Zero Length Flange Adaptor SKU: ZL2063 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF250 to CF100 Zero Length Flange Adaptor SKU: ZL2510 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF250 to CF150 Zero Length Flange Adaptor SKU: ZL2515 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF250 to CF200 Zero Length Flange Adaptor SKU: ZL2520 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available

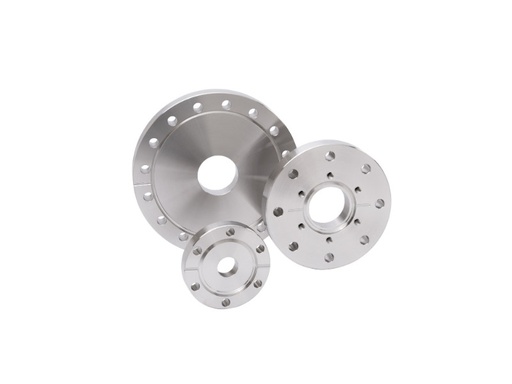

CF250 to CF35 Zero Length Flange Adaptor SKU: ZL2535 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF250 to CF63 Zero Length Flange Adaptor SKU: ZL2563 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF35 to CF16 Zero Length Flange Adaptor SKU: ZL3516 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available	CF63 to CF16 Zero Length Flange Adaptor SKU: ZL6316 CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L Stainless SteelBakeable to 150°CVacuum rating 1×10-11mbarWide range of elbows, crosses, tees and adaptors are available
