Product Range

CF Fittings

CF Vacuum Fittings on this site comply with the ISO 3669 standard and CF Vacuum Fittings up to NW200 are compatible with ConFlat flanges and CF flanges from other leading manufacturers.

While there is no general standard for CF flanges NW250 and over, essentially two “standards” have come into use, one Anglo-American and one European, both of which are available in our product line. Other standards are also used by some other manufacturers and in use at some research centres.

Due to UHV bakeability requirements, sealing of the CF flanges is provided by use of Oxygen-free copper (OFHC) flat gasket rings which usually can only be used once due to deformation. The tightening pressure is exerted by through-bore screws that have to be tightened uniformly and crosswise to avoid excessive strain.

Material: 304L stainless steel as standard, 316L and other materials can be supplied upon request
Bakeable to 450°C
Vacuum rating 1×10-11mbar
Wide ranges of elbows, crosses, tees and adaptors are available
Tubulated flanges are available for welding to stainless steel tube

CF63 Zero Length Viewport SKU: VPZ63 CF Zero length Viewports are used to view the interior of the vacuum chamber and view the process and/or manipulation Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. The CF Zero-length Viewport manufactured to the CF Standard and are compatible with other supplier’s product. Material: Kodial Bakeable up to 200°C at not greater than 2-3 °C per minute To be used with annealed copper gaskets Vacuum rating 1×10-11 mbar	CF100 4 Way Cross Fixed SKU: X100 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available	CF100 4 Way Cross 2 Flanges Rotatable SKU: X100R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available £ 499.95 499.95 GBP	CF150 4 Way Cross Fixed SKU: X150 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available
CF150 4 Way Cross 2 Flanges Rotatable SKU: X150R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF16 4 Way Cross Fixed SKU: X16 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available £ 94.44 94.44 GBP	CF16 4 Way Cross Rotatable SKU: X16R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available £ 104.99 104.99000000000001 GBP	CF200 4 Way Cross Fixed SKU: X200 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available

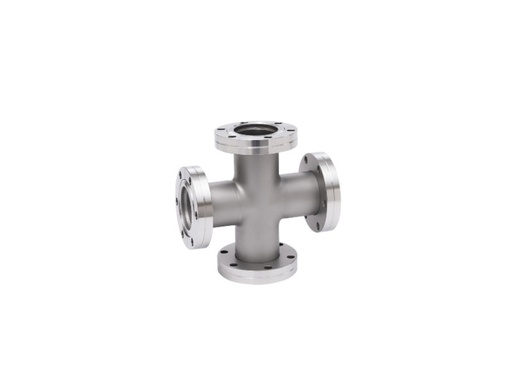

CF200 4 Way Cross 2 Flanges Rotatable SKU: X200R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF35 4 Way Cross Fixed SKU: X35 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available £ 169.00 169.0 GBP	CF35 4 Way Cross Rotatable SKU: X35R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available £ 125.00 125.0 GBP	CF63 4 Way Cross Fixed SKU: X63 CF 4 Way Cross Fixed are used to bring in two branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps. CF 4 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available £ 347.00 347.0 GBP
CF63 4 Way Cross 2 Flanges Rotatable SKU: X63R CF 4 Way Crosses are used to bring in two branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 4 Way Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available £ 299.50 299.5 GBP	CF100 - 6 Way Cross Fixed SKU: XX100 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF100 - 6 Way Cross 2 Flanges Rotatable SKU: XX100R CF 6 Way Crosses are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 6 Way Cross, manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF150 - 6 Way Cross Fixed SKU: XX150 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available

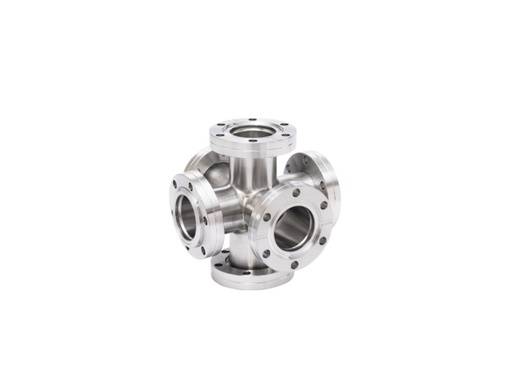

CF150 - 6 Way Cross 2 Flanges Rotatable SKU: XX150R CF 6 Way Crosses are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.The CF 6 Way Cross, manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF16 - 6 Way Cross Fixed SKU: XX16 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available	CF16 - 6 Way Cross 2 Flanges Rotatable SKU: XX16R CF 6 Way Crosses are used to bring in four branch lines of the same size into a main line. Manufactured from: 304L stainless steel. Helium Leak tested to 10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps. The CF 6 Way Cross, manufactured to the CF Standard and are compatible with other supplier’s product. Material: stainless steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows & tees are available	CF200 - 6 Way Cross Fixed SKU: XX200 CF 6 Way Cross Fixed are used to bring in four branch lines of the same size into a main line.Manufactured from: 304L stainless steel. Helium Leak tested to10-10mbar. They are supplied in a sealed plastic bag with protective plastic caps.CF 6 Way Fixed Crosses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: stainless steelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows & tees are available
