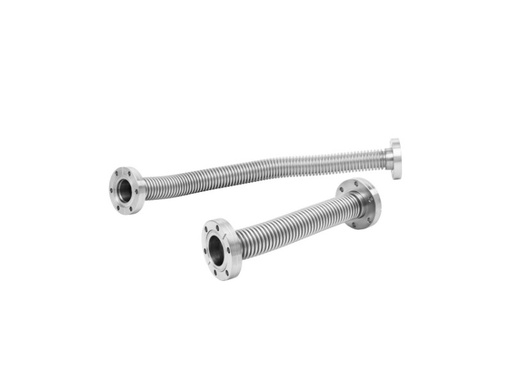

CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available

CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available

High-precision differential rotary drives by using crossed roller bearings, the accuracy and stiffness of rotary drives can be greatly improved. The product structure has a complete inner and outer ring, and the bearing can be directly mounted on the rotating fixed end without any fixing plate and housing. Therefore, while maintaining the distance between the rotary drive rotating body and the fixed flange, it is possible to increase the bearing thickness or the size of the rolling elements in the bearing, and the performance is almost completely unaffected by the bearing installation. This allows a photoelectric encoder to be installed in the compact ultra-high vacuum rotary drive, using a servo motor to drive the worm gear and a precise rotary encoder for position feedback, making the compact ultra-high vacuum rotary drive with high precision. Larger balls increase the rigidity of the UHV rotary drive.

● Servo motor driver
● High-precision Crossed Roller Bearings
● Rotation range: ±175°
● Carry heavy loads: >2000kg
● optical encoder, resolution: ≤0.0001°
● One stage differential pumping for UHV Performance
● Mounting flange on both sides: CF flange, tapped hole

The high-precision full-size three-dimensional translation stage allows the welding bellows to move in the three directions of X, Y, and Z. Adopts linear guide structure and high-precision ball screw, the structure is strong and compact. With servo motor and grating scale, it can achieve sub-micron precision and can also be used with a high-precision DPRF offering a 4th axis of rotation. The product is modular with multiple configurations to choose from

Please contact us for further information and pricing.



Clear Bore up to φ102
Up to 650mm Z travel, +/-12.5mm XY travel (custom options on request)
CF100 travel and CF152 mounting flanges
Servo motor with optical encoder for high precision positioning
Resolution of 0.2μm for X, Y & Z axes

The hollow magnetic coupling rotary drive has a rotatable inner hollow shaft with a CF flange structure at both ends that allows electrical, fluid or other motion to pass through the drive.
This rotary drive product can withstand loads of a certain weight.

● Magnetic Coupling
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Rotation range: 360° continuous
● Laser Etched Scale in 1° Increments
● UHV Compatible materials
● No backlash under low load
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole

The hollow magnetic coupling rotary drive has a rotatable inner hollow shaft with a CF flange structure at both ends that allows electrical, fluid or other motion to pass through the drive.
This rotary drive product can withstand loads of a certain weight.

● Magnetic Coupling
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Rotation range: 360° continuous
● Laser Etched Scale in 1° Increments
● UHV Compatible materials
● No backlash under low load
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole

The hollow magnetic coupling rotary drive has a rotatable inner hollow shaft with a CF flange structure at both ends that allows electrical, fluid or other motion to pass through the drive.
This rotary drive product can withstand loads of a certain weight.

● Magnetic Coupling
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Rotation range: 360° continuous
● Laser Etched Scale in 1° Increments
● UHV Compatible materials
● No backlash under low load
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole

The hollow magnetic coupling rotary drive has a rotatable inner hollow shaft with a CF flange structure at both ends that allows electrical, fluid or other motion to pass through the drive.
This rotary drive product can withstand loads of a certain weight.

● Magnetic Coupling
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Rotation range: 360° continuous
● Laser Etched Scale in 1° Increments
● UHV Compatible materials
● No backlash under low load
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole

ISO Aluminium Centering Rings with Nitrile O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Nitrile. ISO Aluminium Centering Rings with Nitrile O rings are supplied in sealed plastic bags.ISO Aluminium Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO Aluminium Trapped Centering Rings with Nitrile O Rings & Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Nitrile. ISO Aluminium Trapped Centering Rings with Nitrile O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Nitrile O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

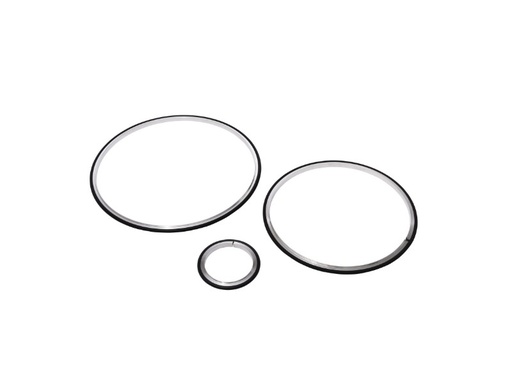

ISO Aluminium Centering Rings with Viton O Rings are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

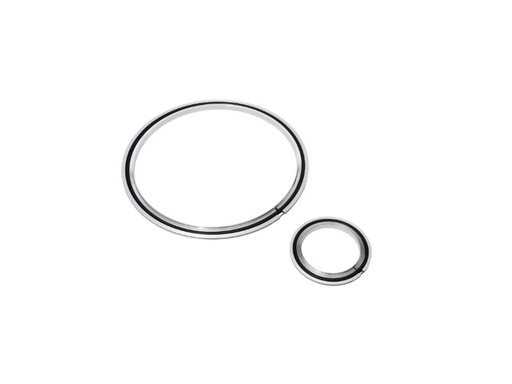

ISO Trapped Centering Rings with Viton O Rings and Outer Traps are used to connect two flanges together and create a vacuum seal with the use of a clamp.Manufactured from: Aluminium and Viton. ISO Aluminium Trapped Centering Rings with Viton O Rings are supplied in sealed plastic bags.ISO Aluminium Trapped Centering Rings with Viton O Rings are manufactured to the ISO Standard and are compatible with other supplier’s product.

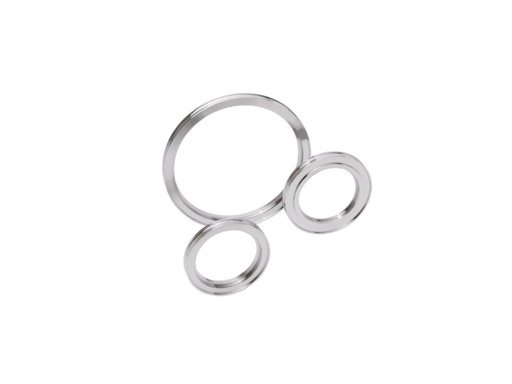

ISO Claw Clamp Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.

Manufactured from: 304 Stainless Steel. ISO Claw Clamp Bored Flanges are supplied in a plastic bag with a protective plastic cap.

ISO Claw Clamp Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO Claw Clamp Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Bored Flanges are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

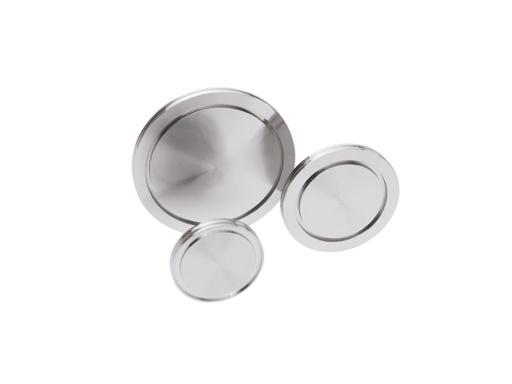

ISO Claw Clamp Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Claw Clamp Blank Flanges are supplied in a plastic bag with a protective plastic cap.ISO Claw Clamp Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO 90 Degree Elbows were manufactured for in vacuum process systems to help alter the direction of pipework.This product is made from 304 stainless steel. The ISO 90 Degree Elbow is also helium leak tested up to 10-8 mbar. The product is packed in a plastic bag and sealed by protective plastic caps.This product is compatible with alternative supplier’s products and is manufactured to the ISO standards.

ISO 45 Degree Bend Elbows are used to change the direction of the pipework as required.

Manufactured from: 304 stainless steel. Helium Leak tested to 10-8 mbar. ISO 45 Degree Bend Elbows are supplied in a sealed plastic bag with protective plastic caps.

ISO 45 Degree Bend Elbows are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO Fixed Bolted Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Bored Flanges are supplied in a plastic bag.ISO Fixed Bolted Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO Fixed Bolted Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Bored Flanges are supplied in a plastic bag.ISO Fixed Bolted Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

ISO Fixed Bolted Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Blank Flanges are supplied in a plastic bag.ISO Fixed Bolted Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.
