CF Fittings

CF Vacuum Fittings on this site comply with the ISO 3669 standard and CF Vacuum Fittings up to NW200 are compatible with ConFlat flanges and CF flanges from other leading manufacturers.

While there is no general standard for CF flanges NW250 and over, essentially two “standards” have come into use, one Anglo-American and one European, both of which are available in our product line. Other standards are also used by some other manufacturers and in use at some research centres.

Due to UHV bakeability requirements, sealing of the CF flanges is provided by use of Oxygen-free copper (OFHC) flat gasket rings which usually can only be used once due to deformation. The tightening pressure is exerted by through-bore screws that have to be tightened uniformly and crosswise to avoid excessive strain.

Material: 304L stainless steel as standard, 316L and other materials can be supplied upon request
Bakeable to 450°C
Vacuum rating 1×10-11mbar
Wide ranges of elbows, crosses, tees and adaptors are available
Tubulated flanges are available for welding to stainless steel tube

CF63 Rotatable Bored CF Flange, 114mm OD 63.5mm ID SKU: F63R63 CF Bored Flanges Rotatable are used for welding onto tube to produce ports and connectors when mating with fabrications with the bolt holes in different alignments.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.Rotatable CF Bored Flanges are manufactured to the CF Standard and are compatible with other supplier’s productMaterial: 304L Stainless SteelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows, crosses, tees and adaptors are availableTubulated flanges are available for welding to stainless steel tube * European standard, to be used with copper gasket OD 272.7 mm £ 40.25 40.25 GBP	CF63 Bored Rotatable Tapped Flange, 63.5mm ID SKU: F63R63T CF Bored Flanges Rotatable are used for welding onto tube to produce ports and connectors when mating with fabrications with the bolt holes in different alignments.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.Rotatable CF Bored Flanges are manufactured to the CF Standard and are compatible with other supplier’s productMaterial: 304L Stainless SteelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows, crosses, tees and adaptors are availableTubulated flanges are available for welding to stainless steel tube * European standard, to be used with copper gasket OD 272.7 mm £ 60.25 60.25 GBP	CF63 Rotatable Bored CF Flange, 114mm OD 70mm ID SKU: F63R70 CF Bored Flanges Rotatable are used for welding onto tube to produce ports and connectors when mating with fabrications with the bolt holes in different alignments. Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap. Rotatable CF Bored Flanges are manufactured to the CF Standard and are compatible with other supplier’s product Material: 304L Stainless Steel Bakeable to 450°C Vacuum rating 1×10-11 mbar Wide range of elbows, crosses, tees and adaptors are available Tubulated flanges are available for welding to stainless steel tube   * European standard, to be used with copper gasket OD 272.7 mm £ 41.23 41.230000000000004 GBP	CF63 Bored Rotatable Tapped Flange, 70mm ID SKU: F63R70T CF Bored Flanges Rotatable are used for welding onto tube to produce ports and connectors when mating with fabrications with the bolt holes in different alignments.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.Rotatable CF Bored Flanges are manufactured to the CF Standard and are compatible with other supplier’s productMaterial: 304L Stainless SteelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows, crosses, tees and adaptors are availableTubulated flanges are available for welding to stainless steel tube * European standard, to be used with copper gasket OD 272.7 mm £ 65.25 65.25 GBP
CF63 Blank Rotatable Tapped Flange SKU: F63RT CF Rotatable Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.CF Rotatable Blank Flanges are manufactured to the CF Standard and are compatible with other supplier’s product.Material: 304L stainless steel as standard, 316L and other materials can be suppliedBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows, crosses, tees and adaptors are availableTubulated flanges are available for welding to stainless steel tube * European standard, to be used with copper gasket OD 272.7 mm	CF63 Blank Tapped Flange SKU: F63T CF Blank flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.The CF Blank flanges are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable to 450°CVacuum rating 1×10-11 mbarWide range of elbows, crosses, tees and adaptors are availableTubulated flanges are available for welding to stainless steel tube * European standard, to be used with copper gasket OD 272.7 mm £ 52.50 52.5 GBP	CF63 Nut, Bolt and Washers SKU: F63TBWS CF Nut Bolt & Washers with Silver Plated Bolts are used to Clamp two flanges together and compress them against the copper gasket creating a vacuum seal for applications involving Baking. The Silver Plating allows for easy disassembly after BakingManufactured from: Stainless Steel. And Silver Plating CF Nut Bolt & Washer (Silver Plated Bolts) sets are supplied in sealed plastic bags.CF Nuts, Bolts & Washers (Silver Plated Bolts) are manufactured to the ISO standard and are compatible with other supplier’s products £ 4.46 4.46 GBP	Fast Entry Door with Viewport, 95mm Viewing Diameter, CF152 Flange SKU: FED100 The quick-load door facilitates manual loading of samples into and out of the vacuum chamber and is widely used in different systems. The injection door is equipped with a spring-loaded handle locking device. The unique patented design (utility model patent number: 201720665992.9) avoids excessive internal pressure and damage to the pre-extraction chamber. The regular version of this product is sealed with an elastic Viton O-ring, suitable for vacuum up to 10-8 mbar, and the window material is replaceable quartz glass. This product is suitable for all CF flanges and can be docked with other equipment. ● UHV Rated to 10-8 mbar ● Bakeable to 150℃ ● Spring-loaded locking mechanism ● With Viewport ● O-ring seal £ 1,486.00 1486.0 GBP
Fast Entry Door with Viewport, 40mm Viewing Diameter, CF70 Flange SKU: FED35 The quick-load door facilitates manual loading of samples into and out of the vacuum chamber and is widely used in different systems. The injection door is equipped with a spring-loaded handle locking device. The unique patented design (utility model patent number: 201720665992.9) avoids excessive internal pressure and damage to the pre-extraction chamber. The regular version of this product is sealed with an elastic Viton O-ring, suitable for vacuum up to 10-8 mbar, and the window material is replaceable quartz glass. This product is suitable for all CF flanges and can be docked with other equipment. ● UHV Rated to 10-8 mbar ● Bakeable to 150℃ ● Spring-loaded locking mechanism ● With Viewport ● O-ring seal £ 743.00 743.0 GBP	Fast Entry Door with Viewport, 60mm Viewing Diameter, CF114 Flange SKU: FED63 The quick-load door facilitates manual loading of samples into and out of the vacuum chamber and is widely used in different systems. The injection door is equipped with a spring-loaded handle locking device. The unique patented design (utility model patent number: 201720665992.9) avoids excessive internal pressure and damage to the pre-extraction chamber. The regular version of this product is sealed with an elastic Viton O-ring, suitable for vacuum up to 10-8 mbar, and the window material is replaceable quartz glass. This product is suitable for all CF flanges and can be docked with other equipment. ● UHV Rated to 10-8 mbar ● Bakeable to 150℃ ● Spring-loaded locking mechanism ● With Viewport ● O-ring seal £ 1,123.00 1123.0 GBP	CF100 - 1000mm Long - Flexible Vacuum Hose Fixed SKU: FX100CF1000 CF Flexible Vacuum Hoses Fixed are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.CF Flexible Vacuum Hoses Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable UP TO 450°CVacuum Rating 1×10-11 mbarWide range of elbows, tees & crosses are available	CF100 - 1000mm Long - Flexible Hose 1 Flange Rotatable SKU: FX100CF1000R CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available

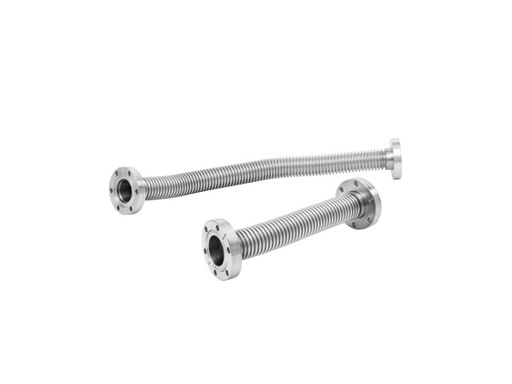

CF63 - 250mm Long - Flexible Vacuum Hose Fixed SKU: FX100CF250 CF Flexible Vacuum Hoses Fixed are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.CF Flexible Vacuum Hoses Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable UP TO 450°CVacuum Rating 1×10-11 mbarWide range of elbows, tees & crosses are available	CF100 - 250mm Long - Flexible Hose 1 Flange Rotatable SKU: FX100CF250R CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available	CF100 - 500mm Long - Flexible Vacuum Hose Fixed SKU: FX100CF500 CF Flexible Vacuum Hoses Fixed are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.CF Flexible Vacuum Hoses Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable UP TO 450°CVacuum Rating 1×10-11 mbarWide range of elbows, tees & crosses are available	CF100 - 500mm Long - Flexible Hose 1 Flange Rotatable SKU: FX100CF500R CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available
CF100 - 750mm Long - Flexible Vacuum Hose Fixed SKU: FX100CF750 CF Flexible Vacuum Hoses Fixed are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.CF Flexible Vacuum Hoses Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable UP TO 450°CVacuum Rating 1×10-11 mbarWide range of elbows, tees & crosses are available	CF100 - 750mm Long - Flexible Hose 1 Flange Rotatable SKU: FX100CF750R CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available	CF16 - 1000mm Long - Flexible Vacuum Hose Fixed SKU: FX16CF1000 CF Flexible Vacuum Hoses Fixed are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.CF Flexible Vacuum Hoses Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable UP TO 450°CVacuum Rating 1×10-11 mbarWide range of elbows, tees & crosses are available	CF16 - 1000mm Long - Flexible Hose 1 Flange Rotatable SKU: FX16CF1000R CF Flexible hoses are used to connect parts together when a solid strait connector is impractical or where the two parts move independently and flexibility are required.Manufactured from: 304L Stainless Steel. Helium Leak tested to 10-10 mbar. They are supplied in a plastic bag with protective plastic caps.The CF Flexible hoses are manufactured to the CF Standard and are compatible with other supplier’s product.Material: Stainless SteelBakeable up to 450°CVacuum Rating 1×10-11 mbarWide range OF elbows, tees & crosses are available
