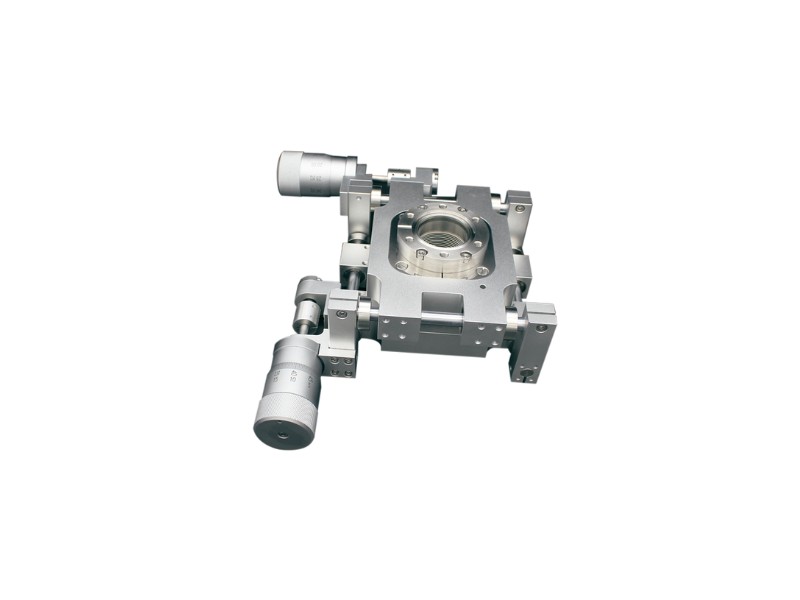

XY Stage, Large Barrel Micrometers 10µm Resolution, CF70 Flanges

https://ultrahighvacuum.com/web/image/product.template/34911/image_1920?unique=c7206be

The 2D translation stage is robust, allows installation in any orientation, is ultra-high vacuum compatible, and provides precise motion. The two-dimensional translation stage includes two parallel flanges, one end is fixed and the other end provides movement. The positioning is performed by adjusting the position of the moving flange relative to the fixed mounting flange, and the movement of the moving flange is controlled by a differential head. Welded bellows allow the flange to accommodate the required movement while ensuring an all-metal sealed vacuum.

● Working Pressure: 10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10μm Resolution
● Mounting flange on both sides: CF35, tapped hole

£ 2,529.88 2529.88 GBP £ 2,529.88

£ 2,529.88

Not Available For Sale

  • FlangeSize

This combination does not exist.

SKU: XY35
Contact Us
XY Stage Large Barrel Micrometres
FlangeSize: CF70

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product:  XY35
