  3. Wobble Stick, 150mm Linear Travel, +/-20 Degree Tilt, CF70 Flange

Wobble Stick, 150mm Linear Travel, +/-20 Degree Tilt, CF70 Flange

https://ultrahighvacuum.com/web/image/product.template/34851/image_1920?unique=b29c9f1

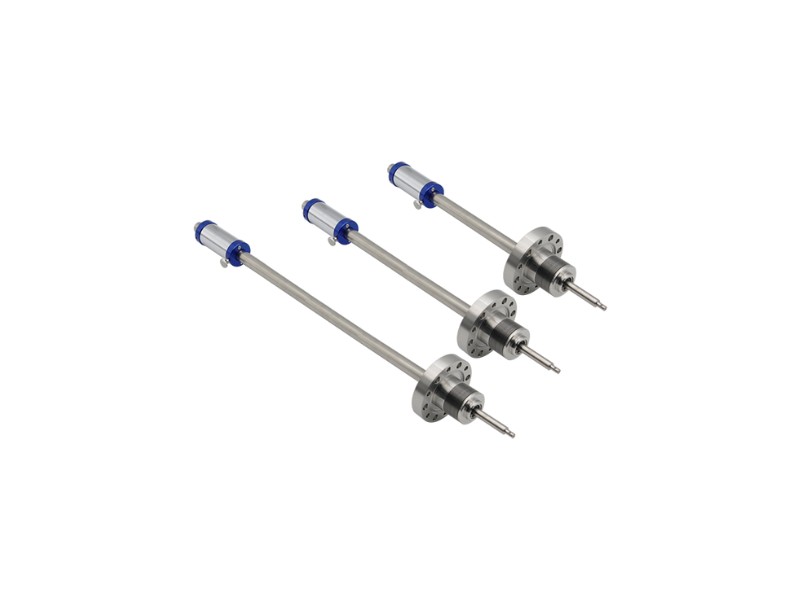

The ultra-high vacuum manipulator combines welded bellows and magnetic coupling technology, enabling the inner shaft to meet both linear and rotary motions, as well as tilt angles of up to 20°. Equipped with NdFeB magnets, it has high torque and large axial thrust.
In addition, it is specially equipped with a support frame for easy support and fixation when idle.
This product can also be customized according to customer requirements, please contact us.

£ 2,554.00 2554.0 GBP £ 2,554.00

£ 2,554.00

Not Available For Sale

  • FlangeSize
  • Travel

This combination does not exist.

SKU: WS35L150
Contact Us
Wobble Stick
FlangeSize: CF70
Travel: 150mm

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.




This product: WS35L150
