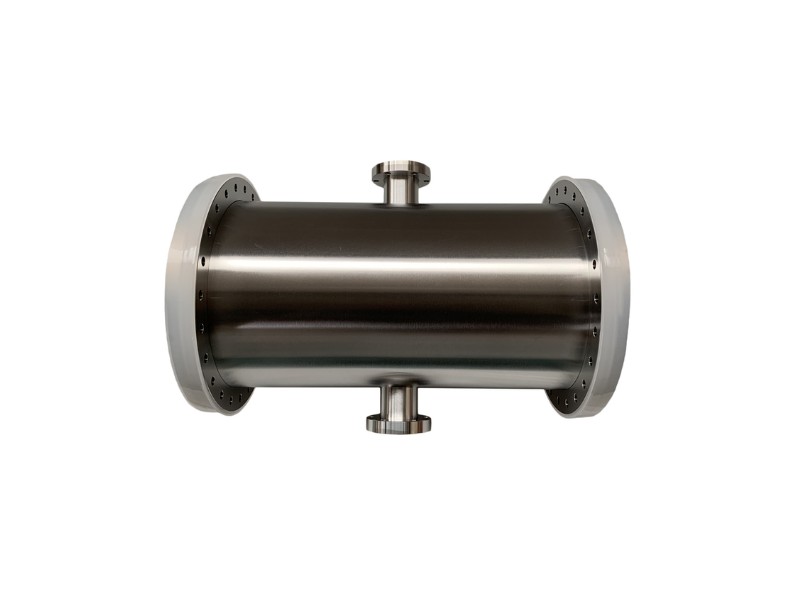

CF150 to CF35 4 Way Reducing Cross 2 Flanges Rotatable
CF150 to CF35 4 Way Reducing Cross 2 Flanges Rotatable
CF 4 Way Reducing Crosses are used to bring two Branch lines of a different size into a main line.
Manufactured from: 304L stainless steel. Helium Leak tested to 10-10 mbar. They are supplied in a sealed plastic bag with protective plastic caps.
The CF 4 Way Reducing Cross 2 Flanges Rotatable are manufactured to the CF Standard and are compatible with other supplier’s product.
• Material: Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows and tees are available
| Flange conversion from/to: CF to CF reducing |
| Configuration: 4-way |
| FlangeSize: CF150 to CF35 |
| Fixed/Rotatable: 2 Flanges Rotatable |
| Material: 304L |
