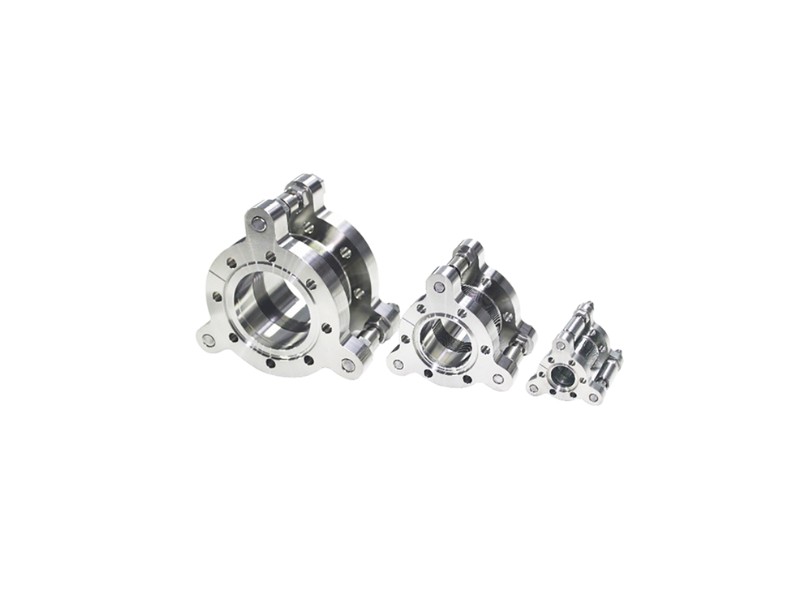

Port Aligner (Manual) +/-3 Degree Tilt, +/-5mm Axial, CF70 Flange

https://ultrahighvacuum.com/web/image/product.template/33040/image_1920?unique=2e03b19

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

● Mounted in any orientation
● Working Pressure:10-11mbar~1bar
● Bakeable to 200℃
● Welded Bellows Seal with SS 316
● Clear Hole Flanges on Both Sides
● Angular tilt: ±3°
● Axial Adjustment: ±5 mm

£ 840.00 840.0 GBP £ 840.00

£ 840.00

Not Available For Sale

  • FlangeSize
  • Actuation

This combination does not exist.


SKU: PA35
FlangeSize: CF70
Actuation: Manual

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.




This product:  PA35

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
