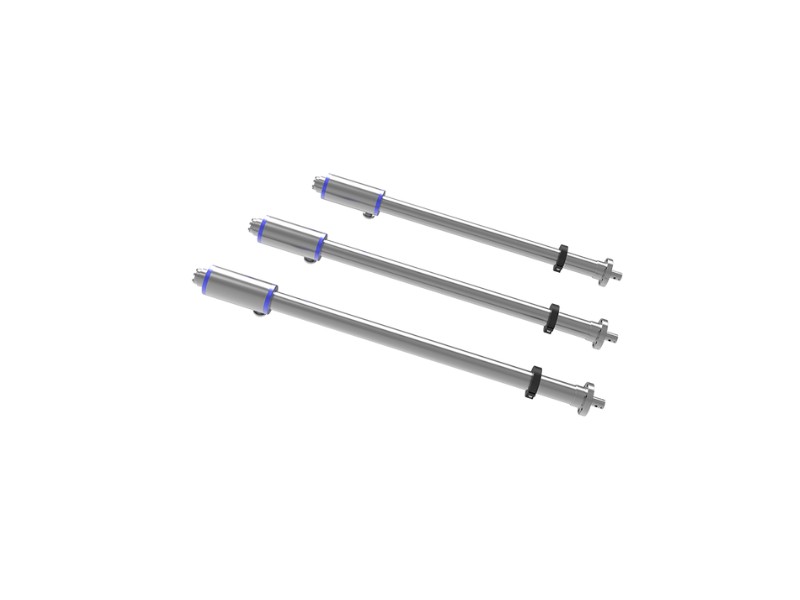

Magnetic Couple Transfer Arm, 600mm Travel, CF70 Flange

Magnetically coupled sample rods use a magnetically coupled drive for applications that require a combination of rotational and linear motion. This product is welded with a fully enclosed structure, and the vacuum side end is a specially designed transfer structure for installing sample grabbing devices and other customized devices.

● Magnetically Coupling
● UHV Rated to 10-11mbar
● Bakeable to 150℃ with External Magnets
● UHV Compatible materials
● Hollow shaft with 20mm OD
● High torque and hardness
● Mounted in any Orientation
● Position lock
