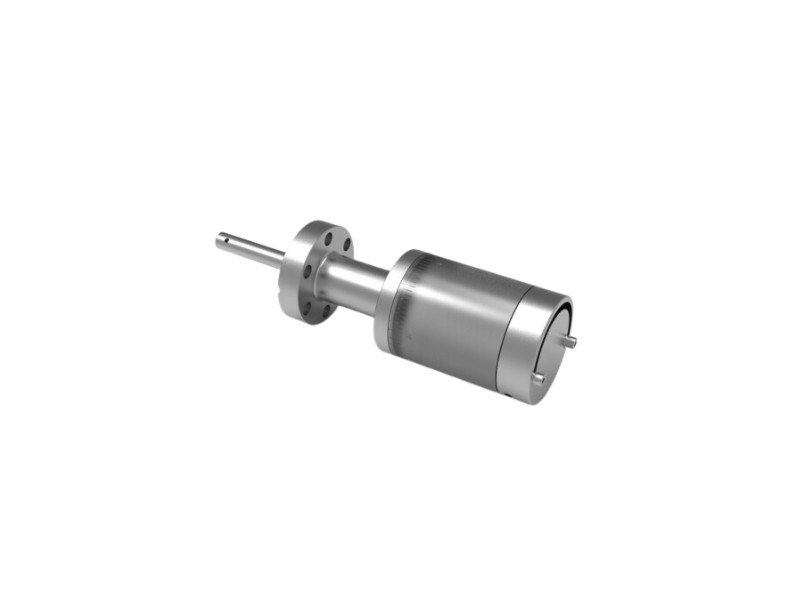

Angle-Adjustable Magnetic Rotary Feedthrough, 0°-180°, CF16 Flange, 1/4" Shaft (manual)

https://ultrahighvacuum.com/web/image/product.template/16409/image_1920?unique=ba59736

Magnetically coupled rotary feedthroughs offer a fail-safe method, over the more traditional bellows or fluidic seals, to enable rotation in a vacuum system. Additionally, some applications can benefit from discrete angle rotation between two fixed points such as shutters protecting sputter sources from cross-contamination in a deposition system. The new range of angle-adjustable magnetic rotary feedthroughs are available with either manual or pneumatic actuation and allow the user to adjust the angle of rotation from 0° to 180°.

Features:

Fail-safe magnetic coupling
UHV rated to 10-11 mbar
No backlash under load
Laser etched scale in 5° increments
Manual actuation

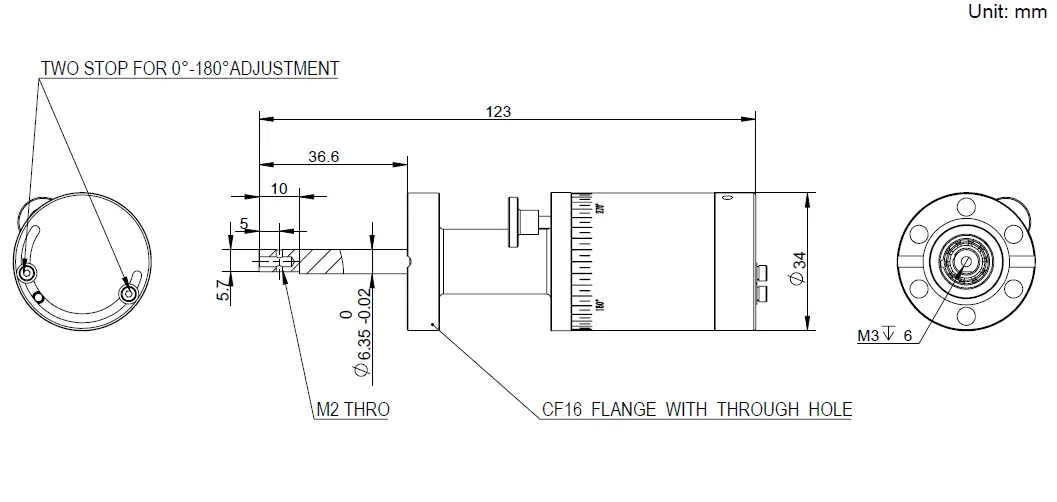

Adjustable angle range 0°-180°

Not Available For Sale

  • FlangeSize
  • Actuation

This combination does not exist.

SKU: MR16R180M-XW6.35
Contact Us
Bellow Sealed Rotary Feedthroughs
FlangeSize: CF16
Actuation: Manual
