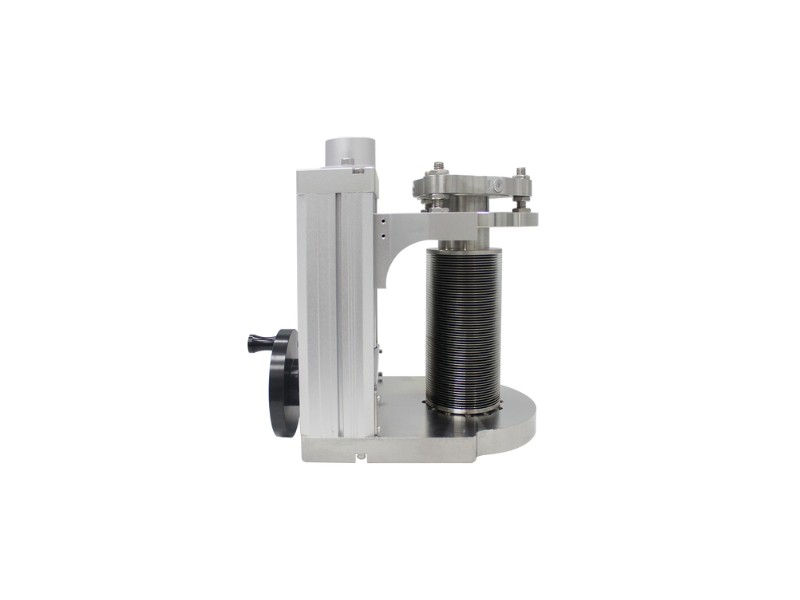

Linear Translator with Aluminum Frame (Stepper Motor) 150mm Travel, +/-3mm Degree Tilt, CF70 Flange

https://ultrahighvacuum.com/web/image/product.template/32153/image_1920?unique=d72a73a

Linear drive with adjustable flange back plate, integrated adjustable flange and aluminum plate frame support, both stability and accuracy, moving flange end allows ±3° deflection, can carry heavy parts in ultra-high vacuum environment of transportation.
This product has a variety of stroke options, manual drive or electric drive, and can be customized.

● Working Pressure: 10-11 mbar~1 bar
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Angular tilt: ±3°
● Top mounting flange: CF flange, tapped hole
● Etched Scale in 1 mm Increments

£ 4,585.41 4585.41 GBP £ 4,585.41

£ 4,585.41

Not Available For Sale

  • FlangeSize
  • Travel
  • Actuation
  • Linear Translator Options

This combination does not exist.

SKU: LPABS35L150A
Contact Us
Linear Translator with Aluminium Frame (with adjustment function)
FlangeSize: CF70
Travel: 150mm
Actuation: Stepper Motor
Linear Translator Options: Aluminium Frame (with adjustment function)

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product:  LPABS35L150A
