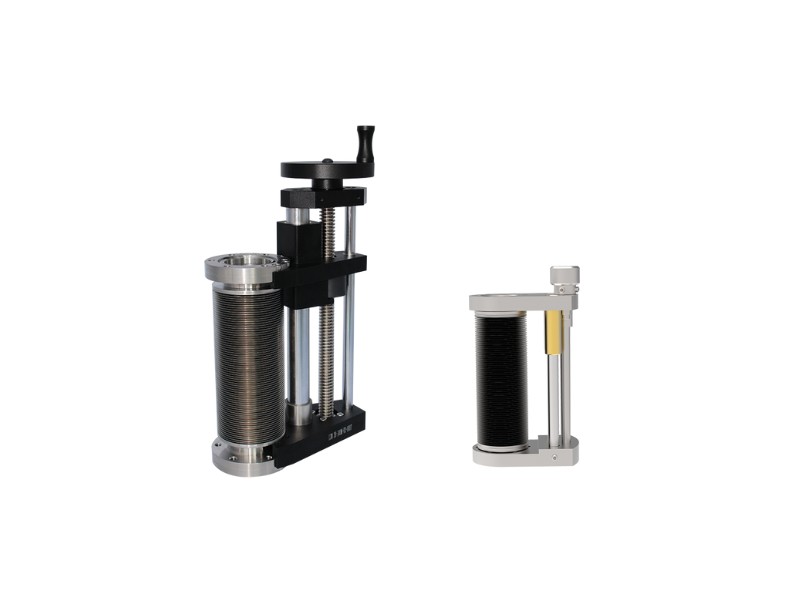

Linear Translator with Port Aligner (Manual) 100mm Travel, +/-3 Degree Tilt, CF70 Flange

https://ultrahighvacuum.com/web/image/product.template/32160/image_1920?unique=6f050e1

The Linear Drive with Adjustable Flange is based on the standard LTM series and integrates an adjustable flange to allow tilt within ±3° for final alignment, useful for beamline calibration diagnostics or ion/sputter source calibration, etc. Adjustment is achieved by three screws. This series of adjustable flanges are equipped with corresponding bolt holes on the basis of standard flanges.
The standard configuration is manual drive, if you need motor drive, please contact us.

● Working Pressure: 10-11mbar~1bar
● Bakeable to 150°C
● Welded Bellows Seal with SS 316
● Tapped Flanges on Both Sides
● Angular tilt: ±3°
● Etched Scale in 1mm Increments

£ 1,869.00 1869.0 GBP £ 1,869.00

£ 1,869.00

Not Available For Sale

  • FlangeSize
  • Travel
  • Actuation
  • Linear Translator Options

This combination does not exist.

SKU: LPA35L100M
Contact Us
Linear Translators with Port Aligner
FlangeSize: CF70
Travel: 100mm
Actuation: Manual
Linear Translator Options: With port aligner

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product:  LPA35L100M
