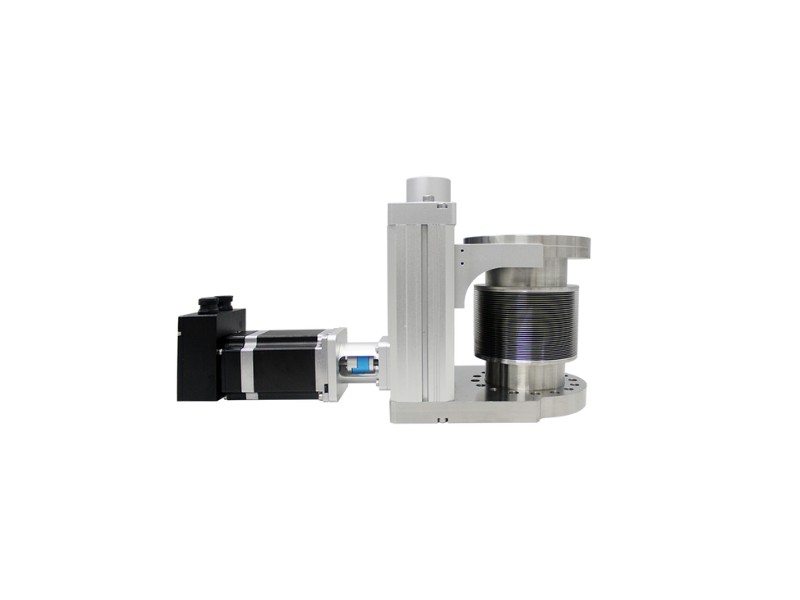

Linear Translator with Aluminum Frame (Manual) 75mm Travel, CF114 Flange

https://ultrahighvacuum.com/web/image/product.template/32148/image_1920?unique=5160139

The backplane linear drive is supported by an aluminum plate frame with sufficient stability and accuracy to carry heavy components in ultra-vacuum environments.
This product has a variety of stroke options, and can choose manual or electric drive.

● Working Pressure: 10-11 mbar~1 bar
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole
● Mounted in any orientation
● Etched Scale in 1 mm Increments

£ 3,004.24 3004.2400000000002 GBP £ 3,004.24

£ 3,004.24

Not Available For Sale

  • FlangeSize
  • Travel
  • Actuation
  • Linear Translator Options

This combination does not exist.

SKU: LBS63L75M
Contact Us
Linear Translators with Aluminium Frame
FlangeSize: CF114
Travel: 75mm
Actuation: Manual
Linear Translator Options: Aluminium frame

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product: LBS63L75M
