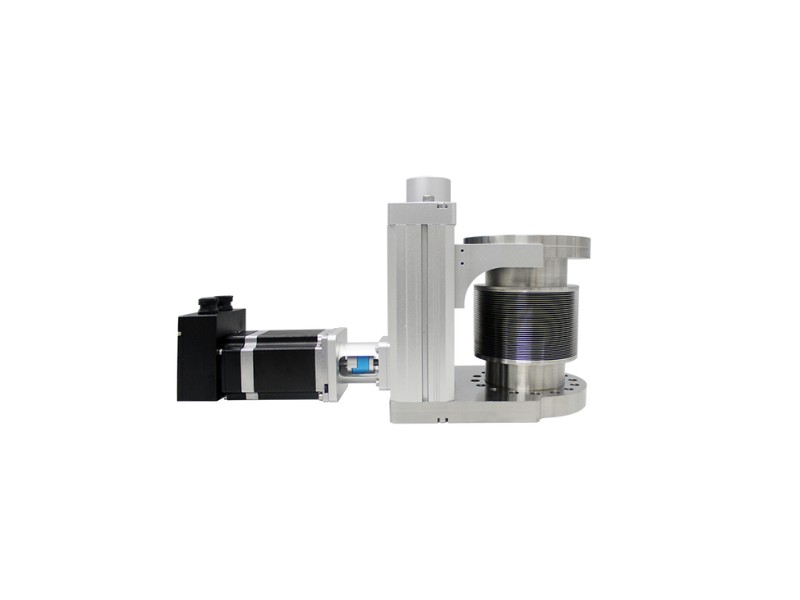

Linear Translator with Aluminum Frame (Manual) 50mm Travel, CF114 Flange

https://ultrahighvacuum.com/web/image/product.template/32145/image_1920?unique=04b2e8f

The backplane linear drive is supported by an aluminum plate frame with sufficient stability and accuracy to carry heavy components in ultra-vacuum environments.
This product has a variety of stroke options, and can choose manual or electric drive.

●  Working Pressure: 10-11 mbar~1 bar
●  Bakeable to 150℃
●  Welded Bellows Seal with SS 316
●  Top mounting flange: CF flange, tapped hole
●  Bottom mounting flange: CF flange, clear hole
●  Mounted in any orientation
●  Etched Scale in 1 mm Increments

£ 2,688.00 2688.0 GBP £ 2,688.00

£ 2,688.00

Not Available For Sale

  • FlangeSize
  • Travel
  • Actuation
  • Linear Translator Options

This combination does not exist.

SKU: LBS63L50M
Contact Us
Linear Translators with Aluminium Frame
FlangeSize: CF114
Travel: 50mm
Actuation: Manual
Linear Translator Options: Aluminium frame

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.



This product: LBS63L50M
