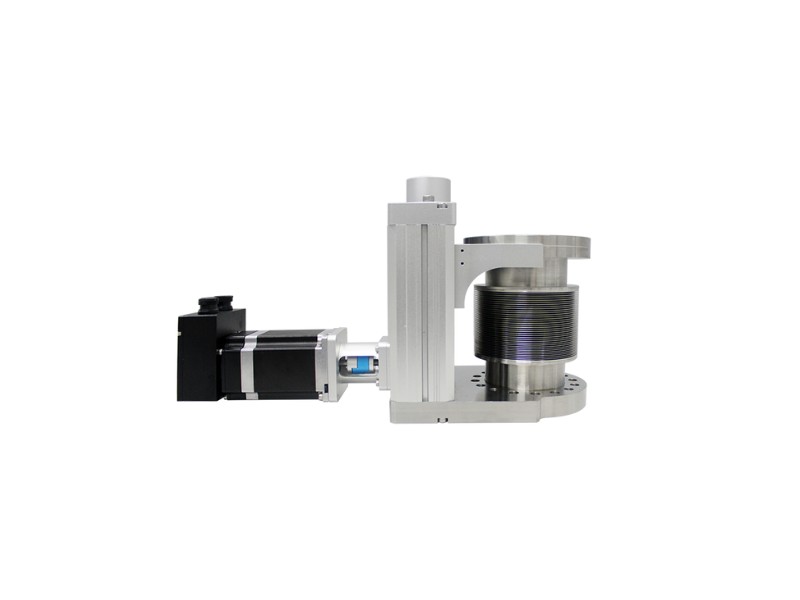

Linear Translator with Aluminum Frame (Manual) 200mm Travel, CF114 Flange
The backplane linear drive is supported by an aluminum plate frame with sufficient stability and accuracy to carry heavy components in ultra-vacuum environments.
This product has a variety of stroke options, and can choose manual or electric drive.
● Working Pressure: 10-11 mbar~1 bar
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole
● Mounted in any orientation
● Etched Scale in 1 mm Increments

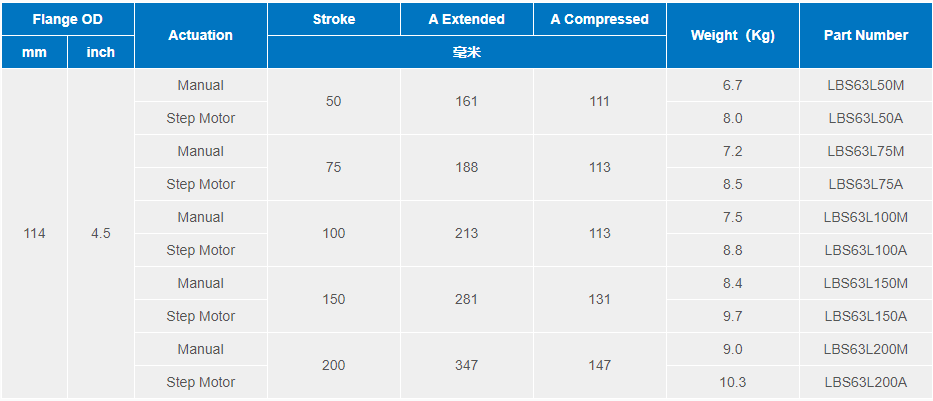

| FlangeSize: CF114 |
| Travel: 200mm |
| Actuation: Manual |
| Linear Translator Options: Aluminium frame |
This product: LBS63L200M
