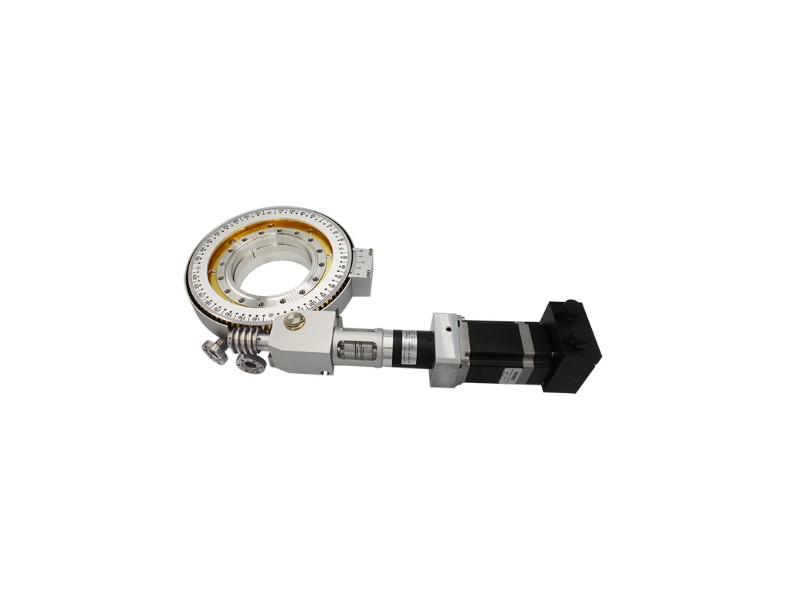

Differentially Pumped Rotary Feedthrough (Stepper Motor) 360 Degree Rotation, CF152 Flange

https://www.ultrahighvacuum.com/web/image/product.template/18298/image_1920?unique=fde06fb

The differential rotary drive allows two flanges to rotate relative to each other coaxially, and can be used as a modular component to build an ultra-high vacuum multi-axis manipulation mechanism, providing basic rotary motion for the assembly and enabling 360° continuous rotation.

Differential rotational drives can be applied to sample surface analysis (XPS, AES or SIMS), ion/neutron/atom scattering experiments, etc.

• Manual/ Step Motor Actuator
• Precision Ball Bearings and Quality PTFE
• Rotation range: 360° continuous
• Bakeable to 150℃
• Laser Etched Scale in 1° Increments
• Two Stage Differential Pumping for UHV Performance

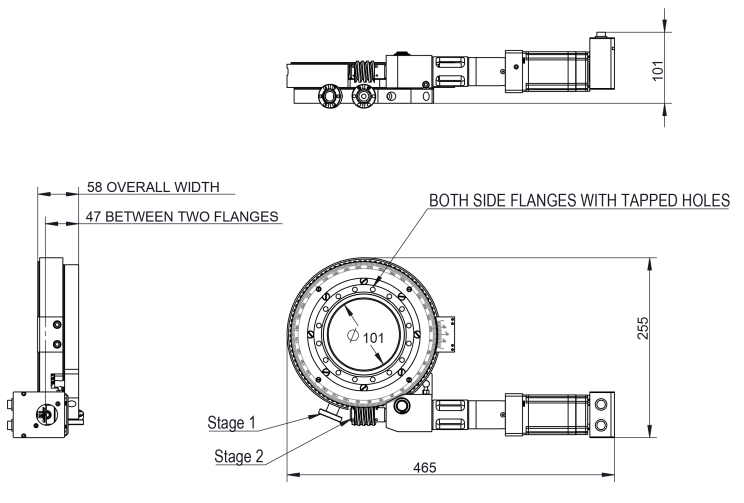

• Mounting flange on both sides: CF flange, tapped hole

£ 8,809.00 8809.0 GBP £ 8,809.00

£ 8,809.00

Not Available For Sale

  • FlangeSize
  • Actuation

This combination does not exist.

SKU: DPRF100A
Contact Us
Differentially Pumped Rotary Feedthroughs
FlangeSize: CF152
Actuation: Stepper Motor

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

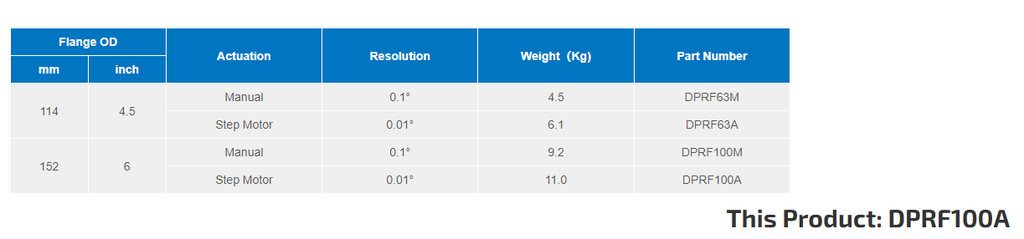

This product: DPRF100A
